Séparateur d'Urine pour Toilettes Sèches - Toilettes Compostables Écologiques
(inc. VAT and UK shipping)
Description
UNE SÉPARATION SIMPLE ET EFFICACE
Le séparateur d’urine constitue l’élément central de vos toilettes sèches. En séparant efficacement les déchets solides et liquides, il garantit une utilisation sans odeur tout en permettant une gestion des déchets propre et hygiénique.
Les séparateurs d'urine pour toilettes sèches de Free Range Designs sont fabriqués en plastique ABS de haute qualité, garantissant une robustesse exceptionnelle et une durabilité optimale, même en cas d'utilisation intensive.
Ce séparateur de Free Range Designs est la solution parfaite pour ceux qui souhaitent concevoir leurs propres toilettes sèches à séparation. Forts de plusieurs années d’expérience et d’améliorations continues, nos séparateurs ont été conçus pour répondre aux besoins anatomiques variés de tous les utilisateurs. Ils garantissent une séparation efficace des déchets, faisant ainsi de cet élément la pièce centrale d’un système de toilettes sans odeur.
Delivery time: 1-3 working days
Customers outside the UK buy here
Hello international customers
Wherever you are in the world, you can receive one of urine separators!
European Customers
If you are in the EU - to avoid issues with taxes - please purchase through one of our Amazon or eBay stores. See links below.
International Customers outside the EU
1. You can Add to Cart as normal and we will deliver from the UK. Standard shipping times are between 5-10 days.
2. If your country is listed below, order from our Amazon shop for Next Day Delivery.
** Our Amazon Shops offer next day Prime Delivery **
Germany: ebay.de/str/freerangedesigns
France: ebay.fr/str/freerangedesigns
Italy: ebay.it/str/freerangedesigns
Spain: ebay.es/str/freerangedesigns

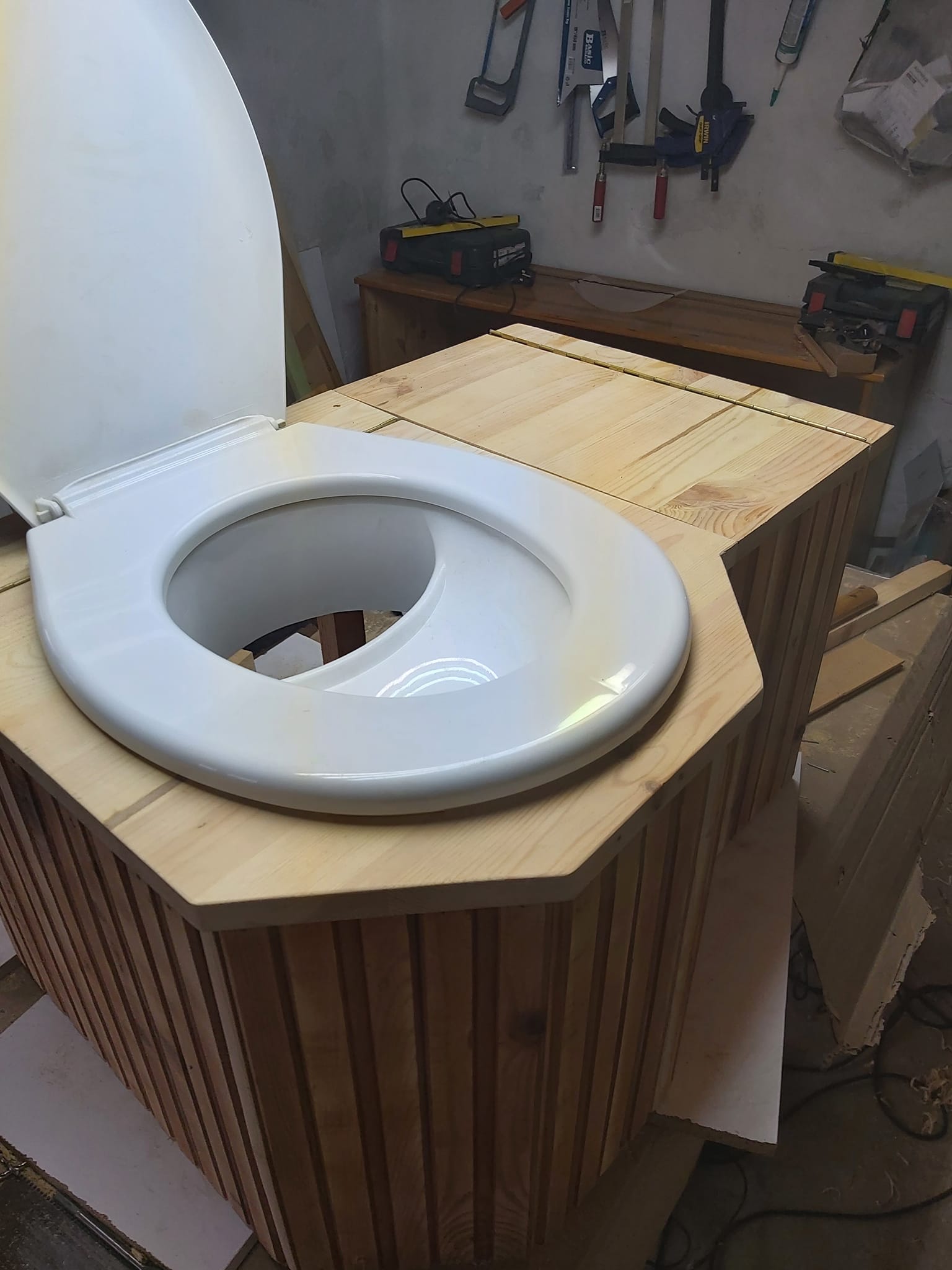

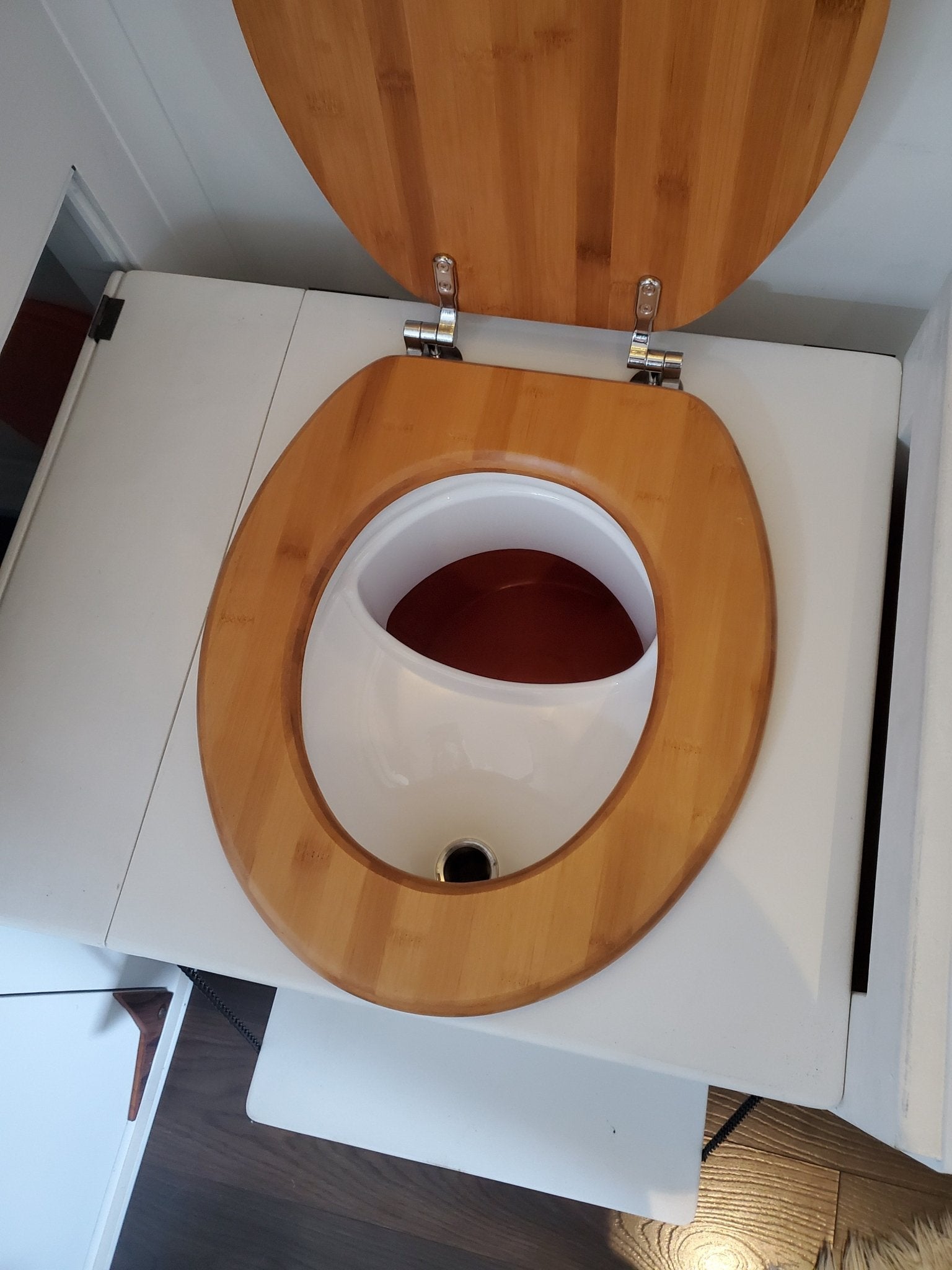

Customer Photos
Technical Data
Material
- made from recyclable ABS plastic
- easy to adjust and work with
- 4 mm strong material
Dimensions
Length : 17,50 cm
Width : 28,50 cm
Height : 12,80 cm
Tapered Spout Diameter : 30mm - 32mm
Key Features
- 20 years design experience
- Latest diverting Technology
- Durable construction
- Smooth, easy-to-clean surface
FAQ
Here are some common questions we have been asked over the 20 years of selling urine diverters.
Do you always have stock available?
Yes, we make the urine separators ourselves in our workshop in Wales, UK. This means that we can control production and never run out of stock.
How many different designs of separator do you have?
We make two different designs: the Classic Urine Separator and the Complete Urine Separator.
What features do the separators share?
- The internal measurements of both separators are exactly the same. The funnel bowl size is the same; the outlet pipe has the same dimensions and both separators are fitted with the same size metal filter.
- The separators are all made from the same high quality 4mm ABS plastic.
What are the differences between the two separators?

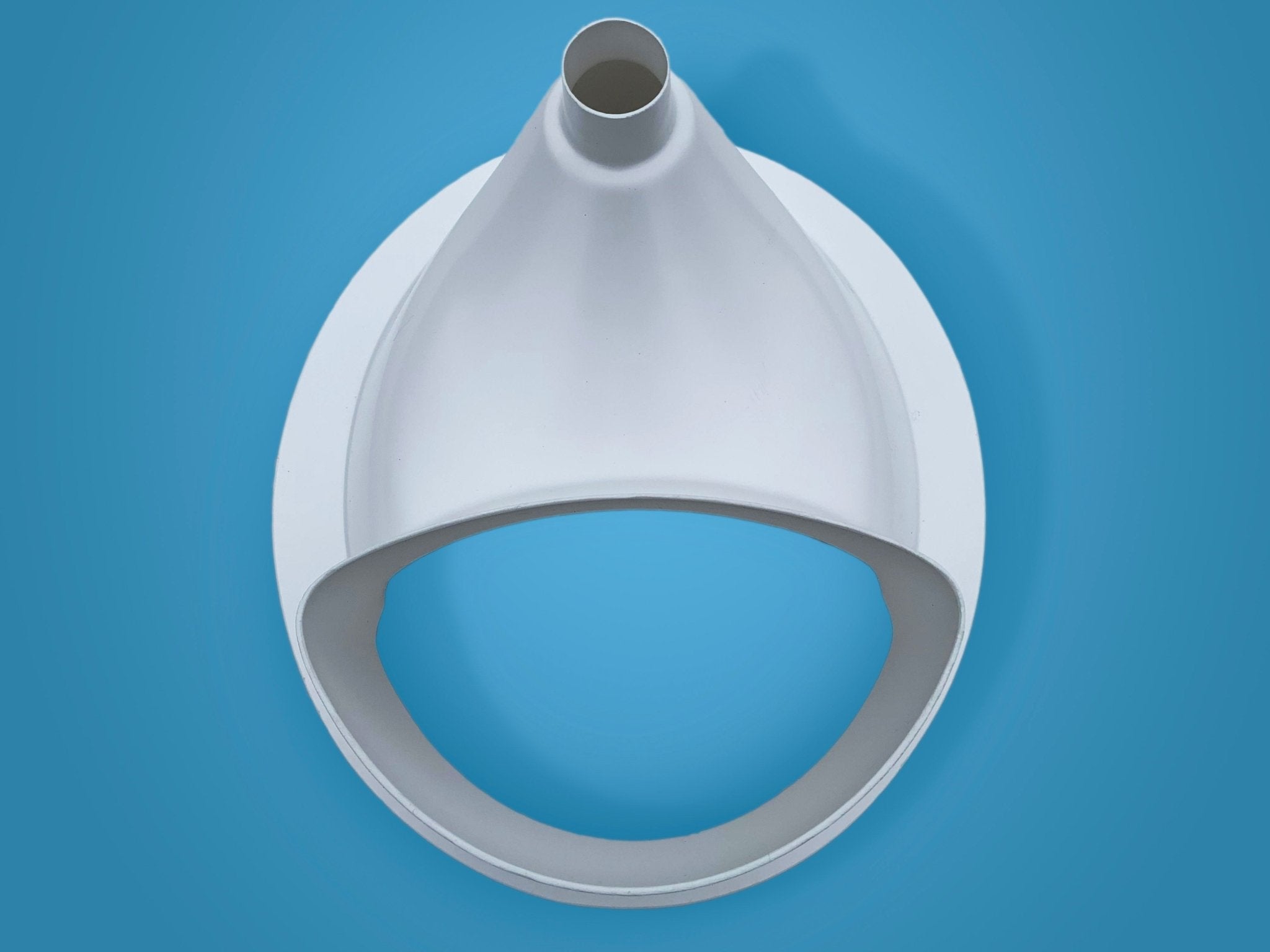

The Compact Urine Separator is the original design that we first made in 2009. It is smaller than the Complete Separator and fills around the front 1/3 of the oval space inside the toilet seat. The Compact Separator has a single hole for collecting urine, leaving the space behind open.

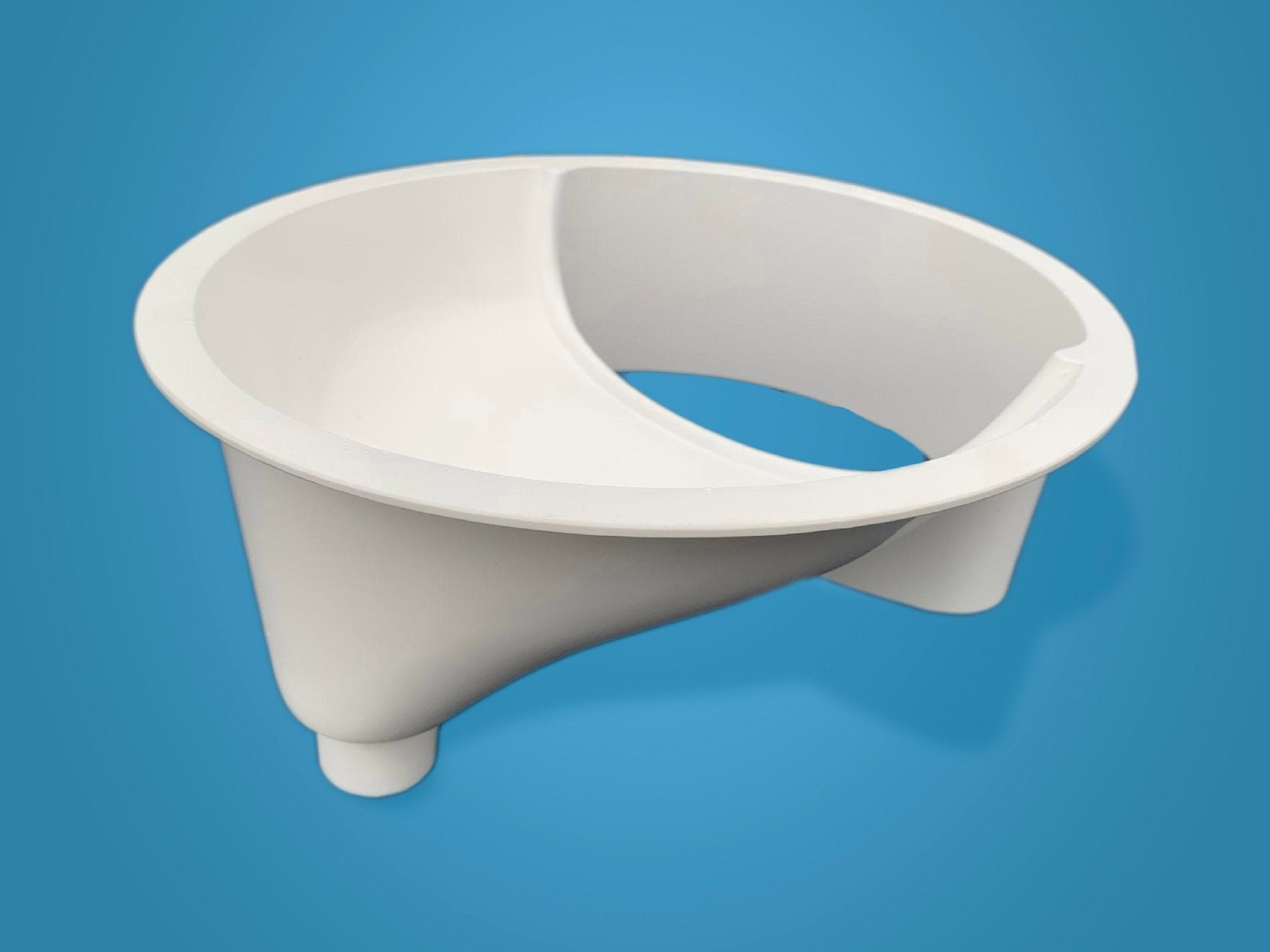

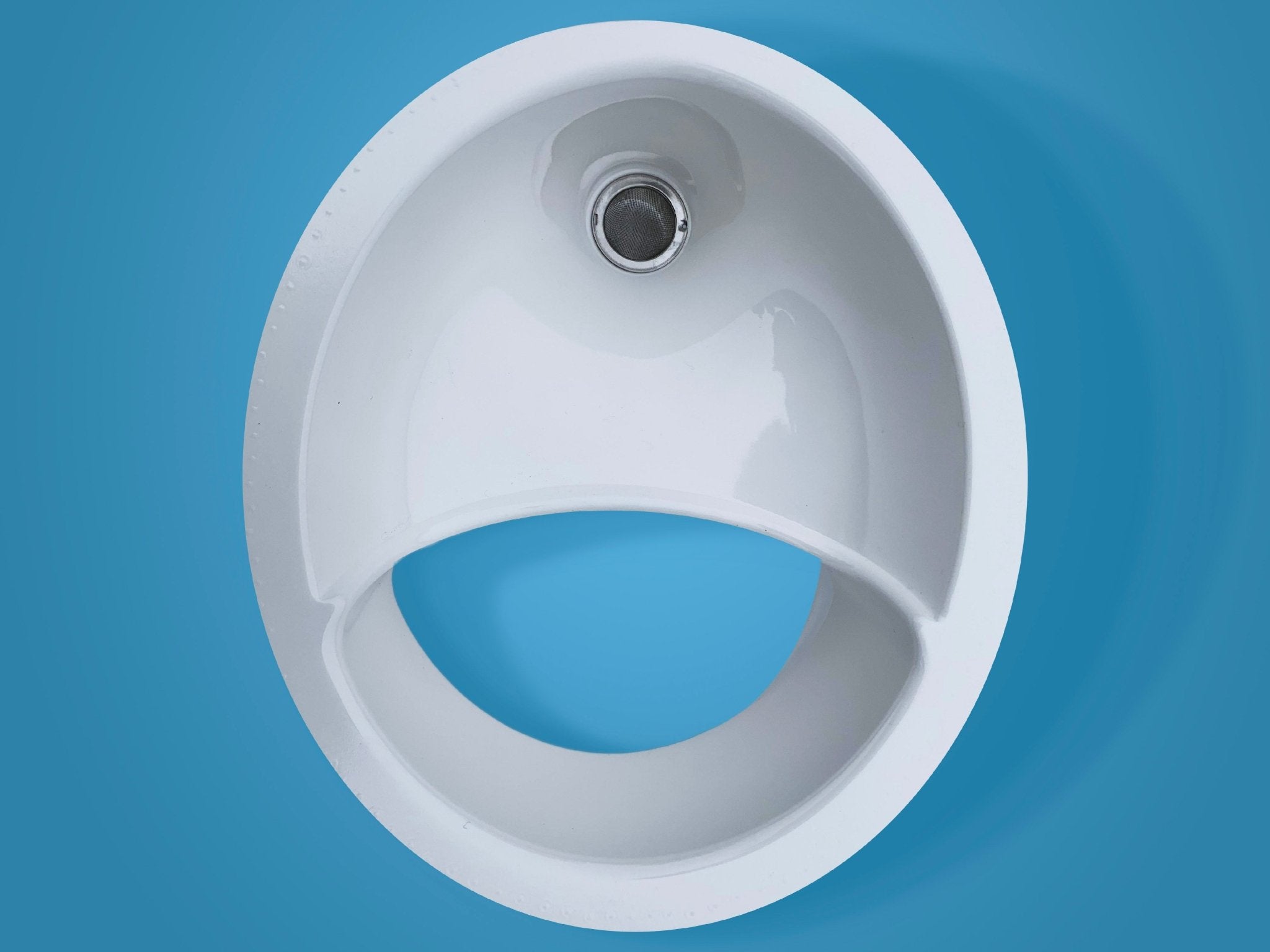

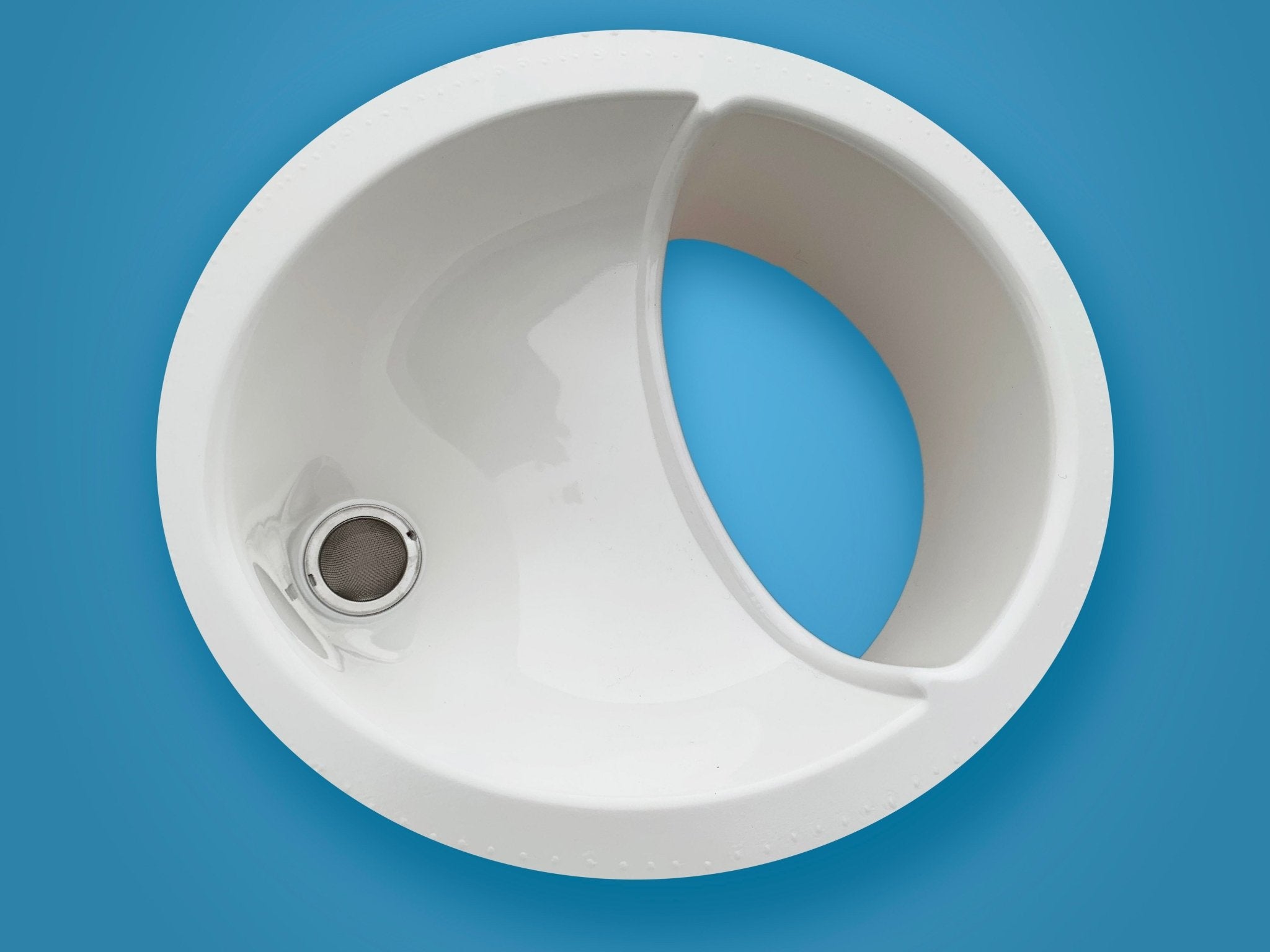

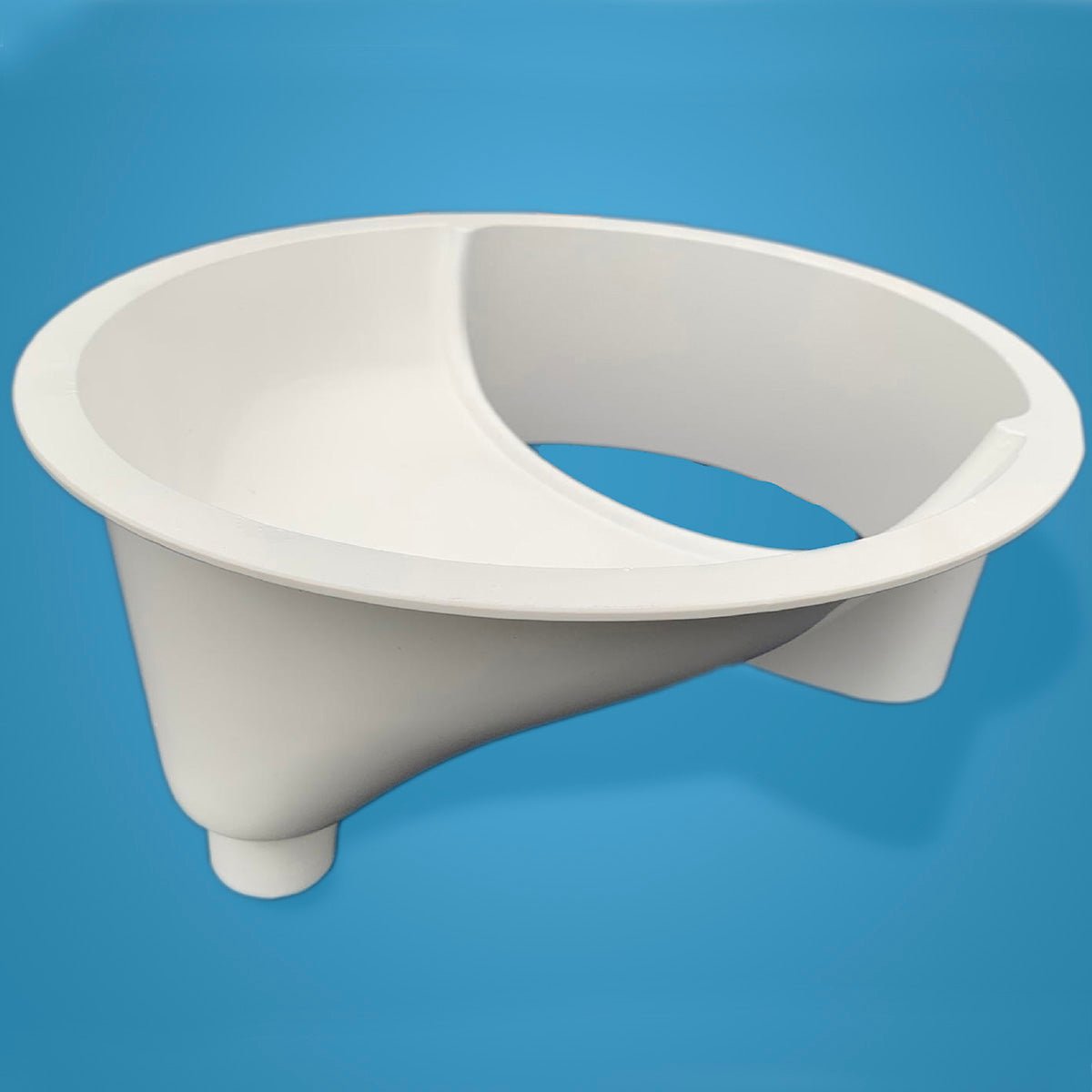

The Complete Urine Separator has a rim at the back and an additional opening for solid waste. This opening extends downwards, containing solid waste as it falls, so that it lands safely in the bucket and the inside of the toilet doesn’t get dirty. The Complete separator fills the entire oval space inside the toilet seat.
The Complete Urine Separator is supplied pre-cut into an oval shape. No further cutting is required. The Compact Urine Separator is supplied square with extra plastic around the funnel curve. You can use it exactly as it is, or you can easily cut the plastic to a bespoke size using a jigsaw at the lowest speed.
What are the benefits of the different separators?
The Compact Urine Separator is smaller and its position can be adjusted, moving it slightly forwards or backwards inside the oval opening of the toilet seat, to capture the maximum amount of urine. The Complete Separator is in one fixed position, as it fills the entire oval space.
The Complete Separator is larger has a contained area at the back for solid waste. This can help to keep the inside of the compost toilet clean.
What are the separators made from?
All Free Range Designs urine diverters are made from solid 4mm ABS plastic, in either white or black. ABS plastic is a very strong and durable material; it is also recyclable, and easy to clean with a high-gloss surface.
What pipe size do I need to connect to the separator?
The external diameter of the funnel outlet on both separators is 30mm. We therefore recommend you use a 32mm pipe, also sold as 1, ¼”
