Compact Urine Separator Diverter for Composting Toilets
(inc. VAT and UK shipping)
Description

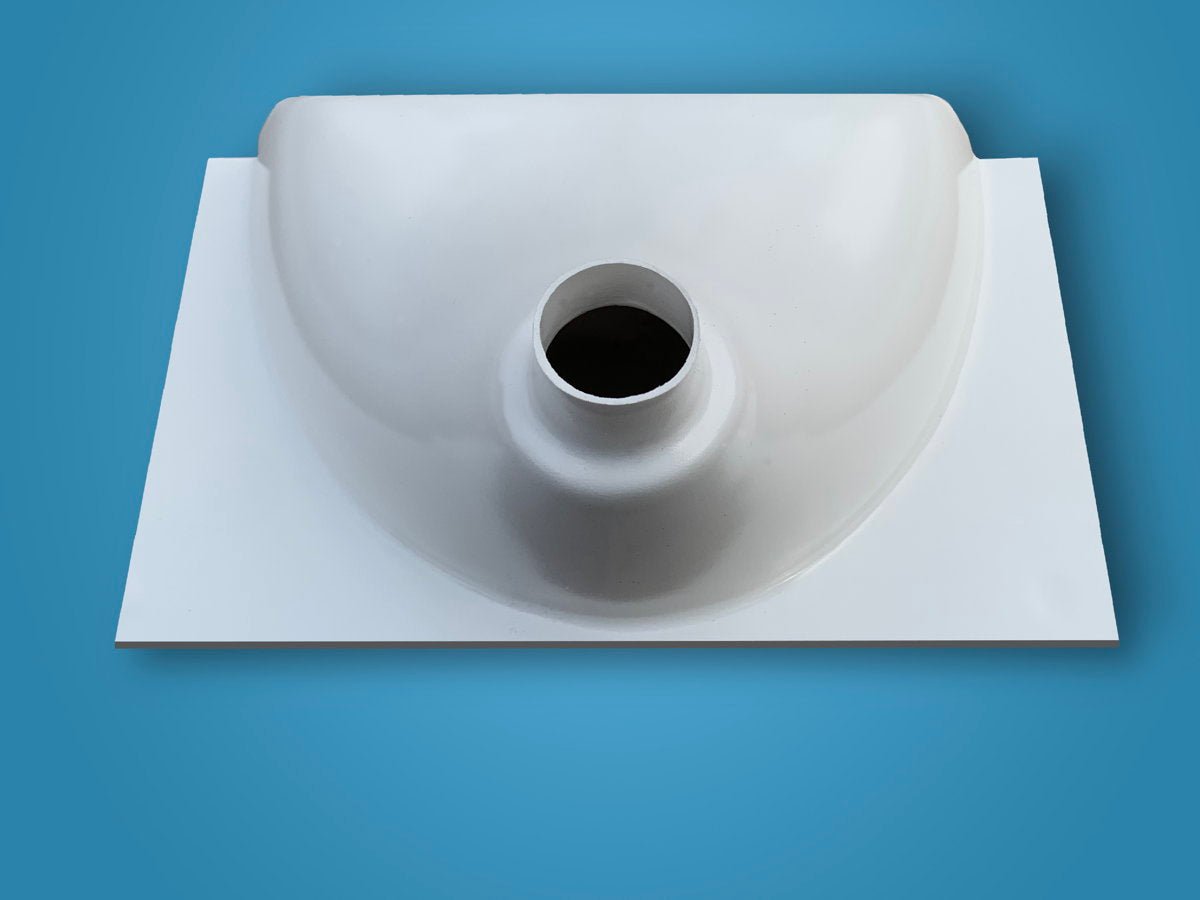

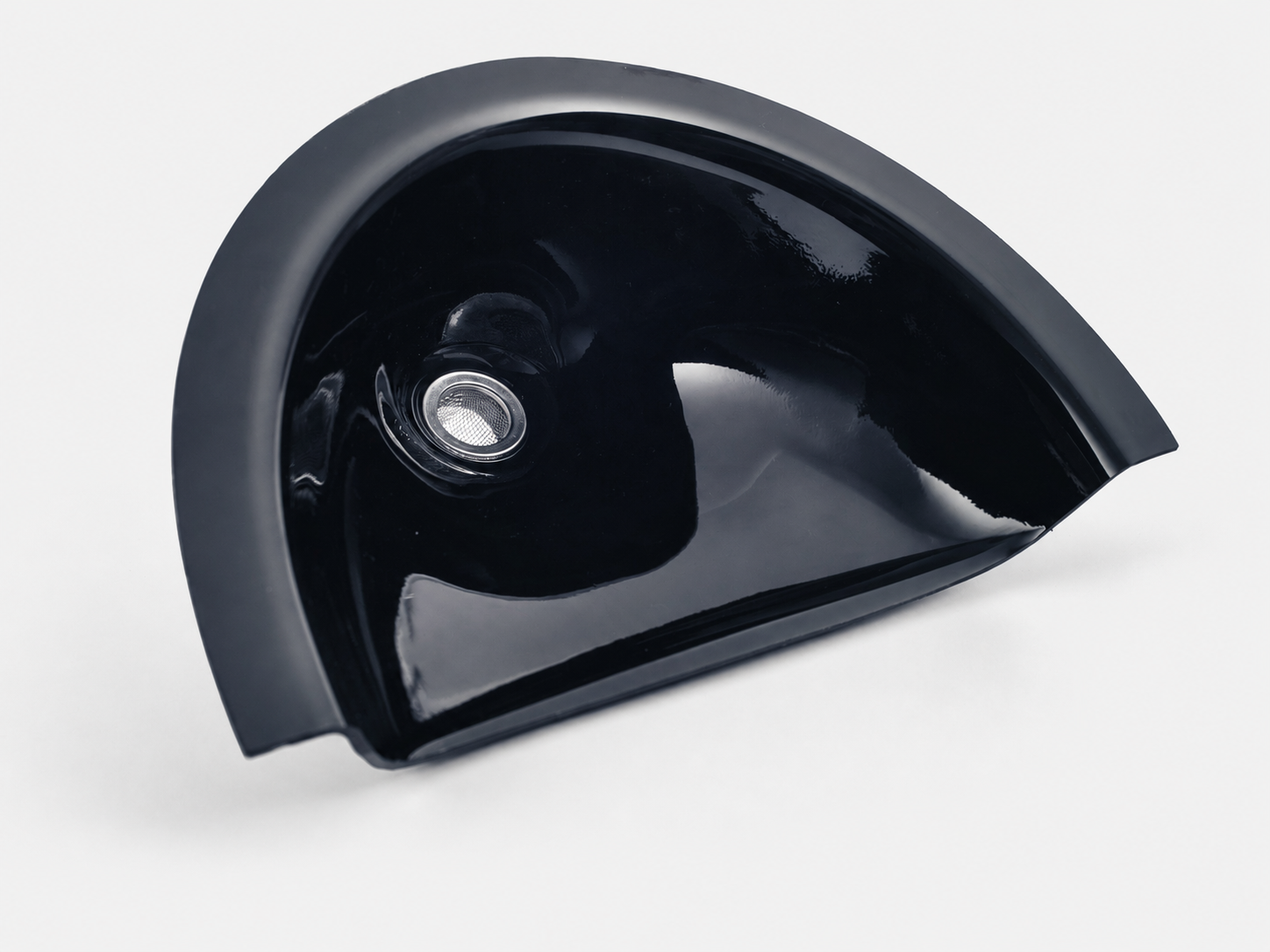

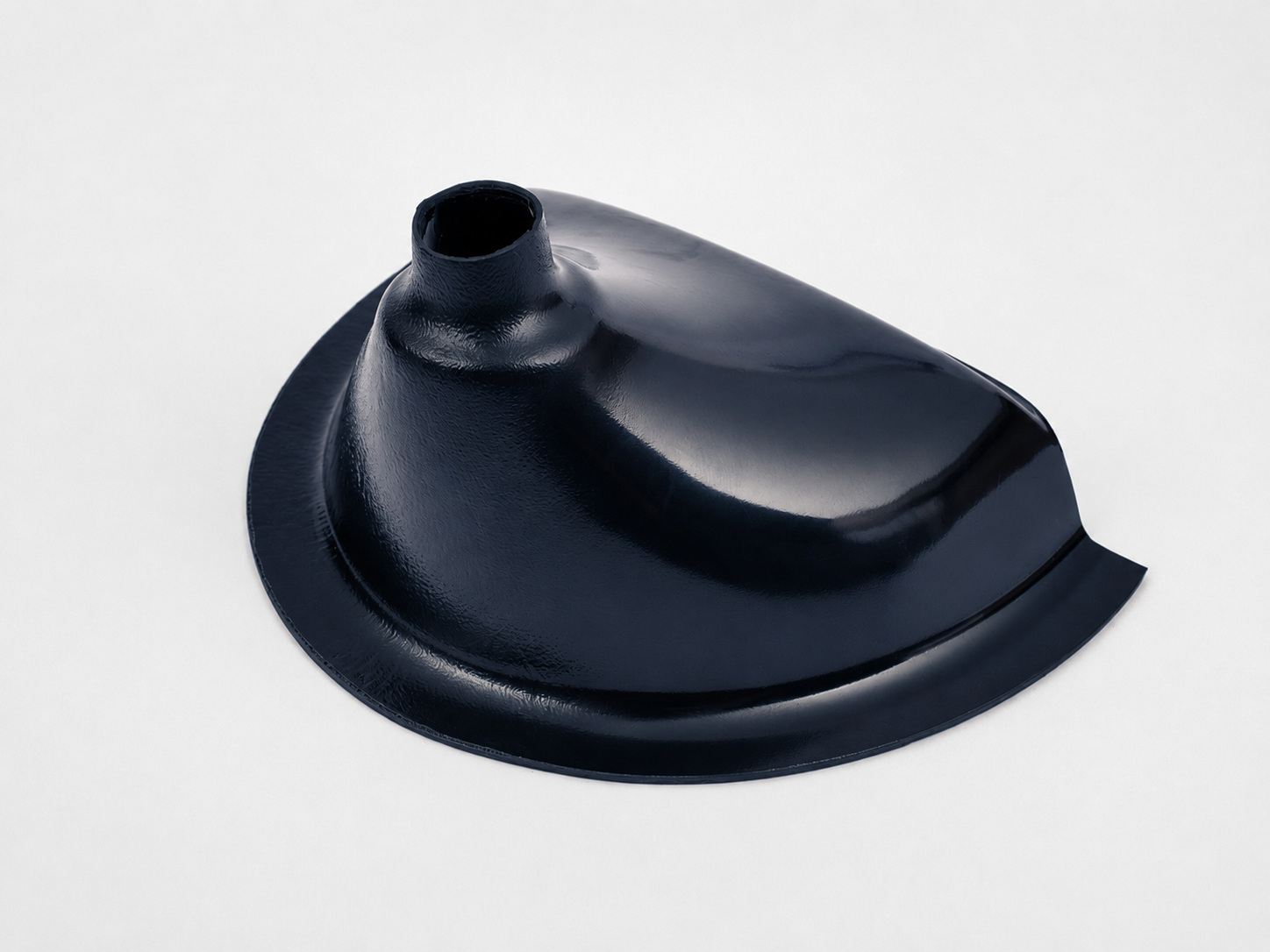

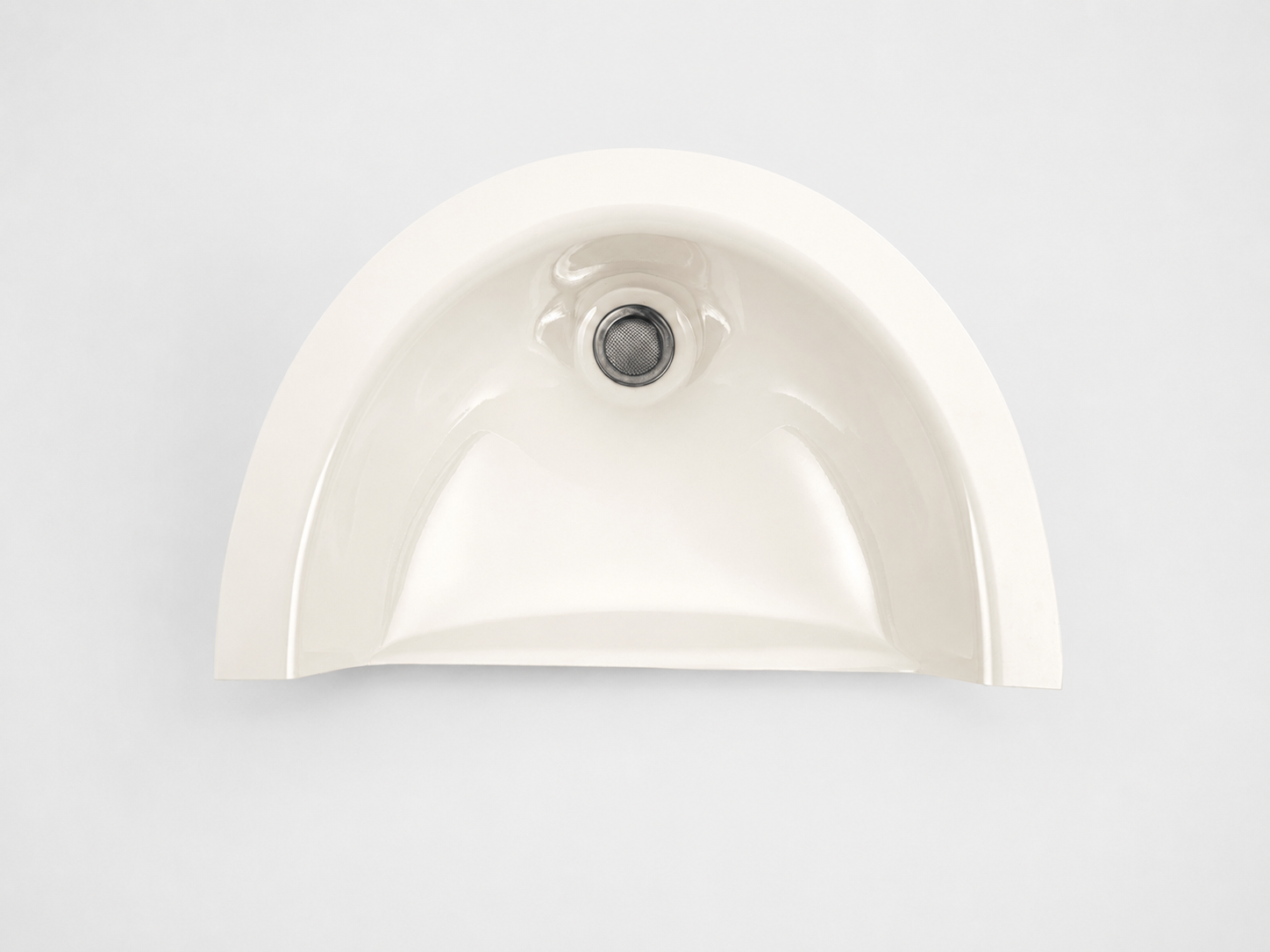

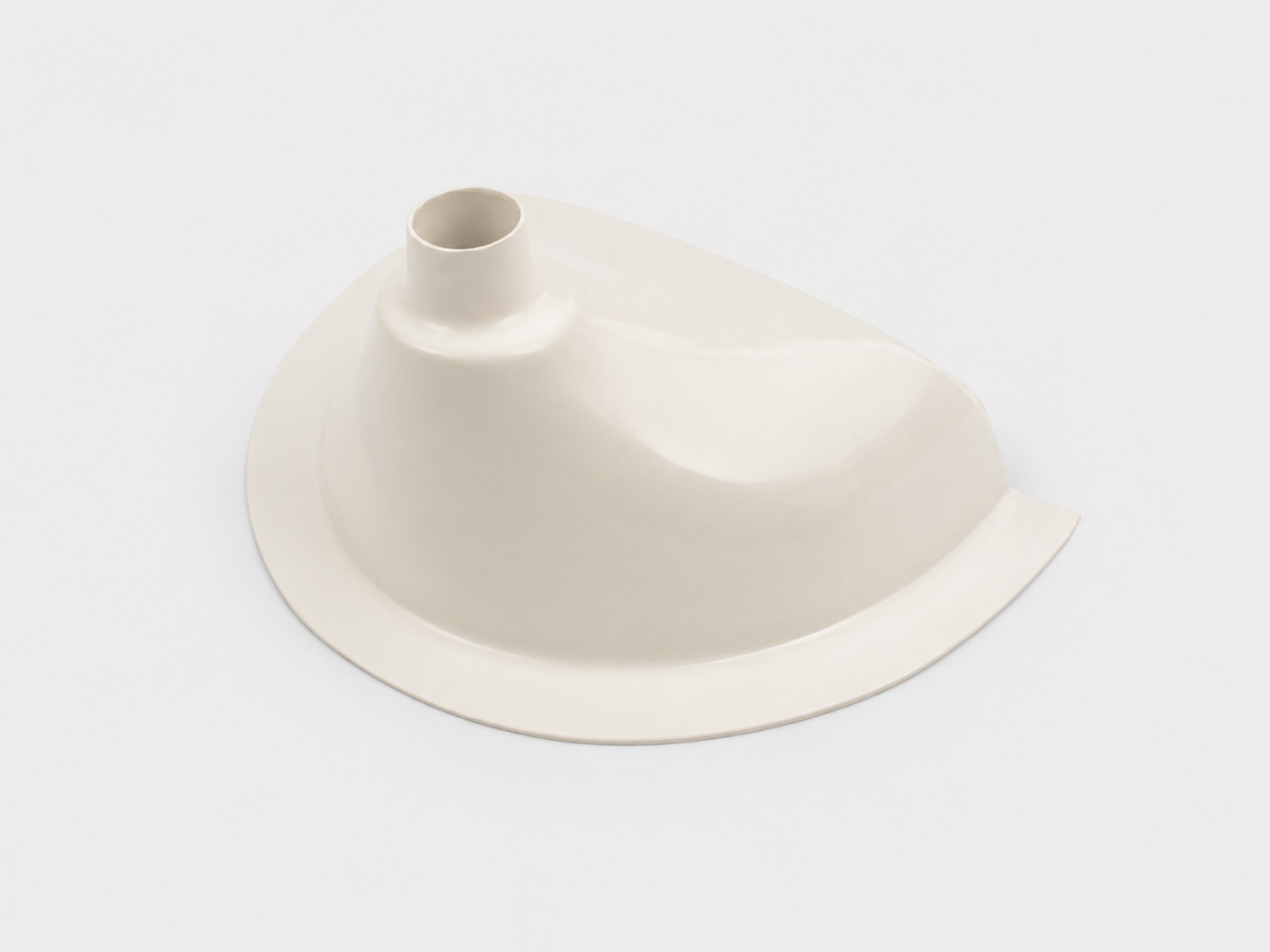

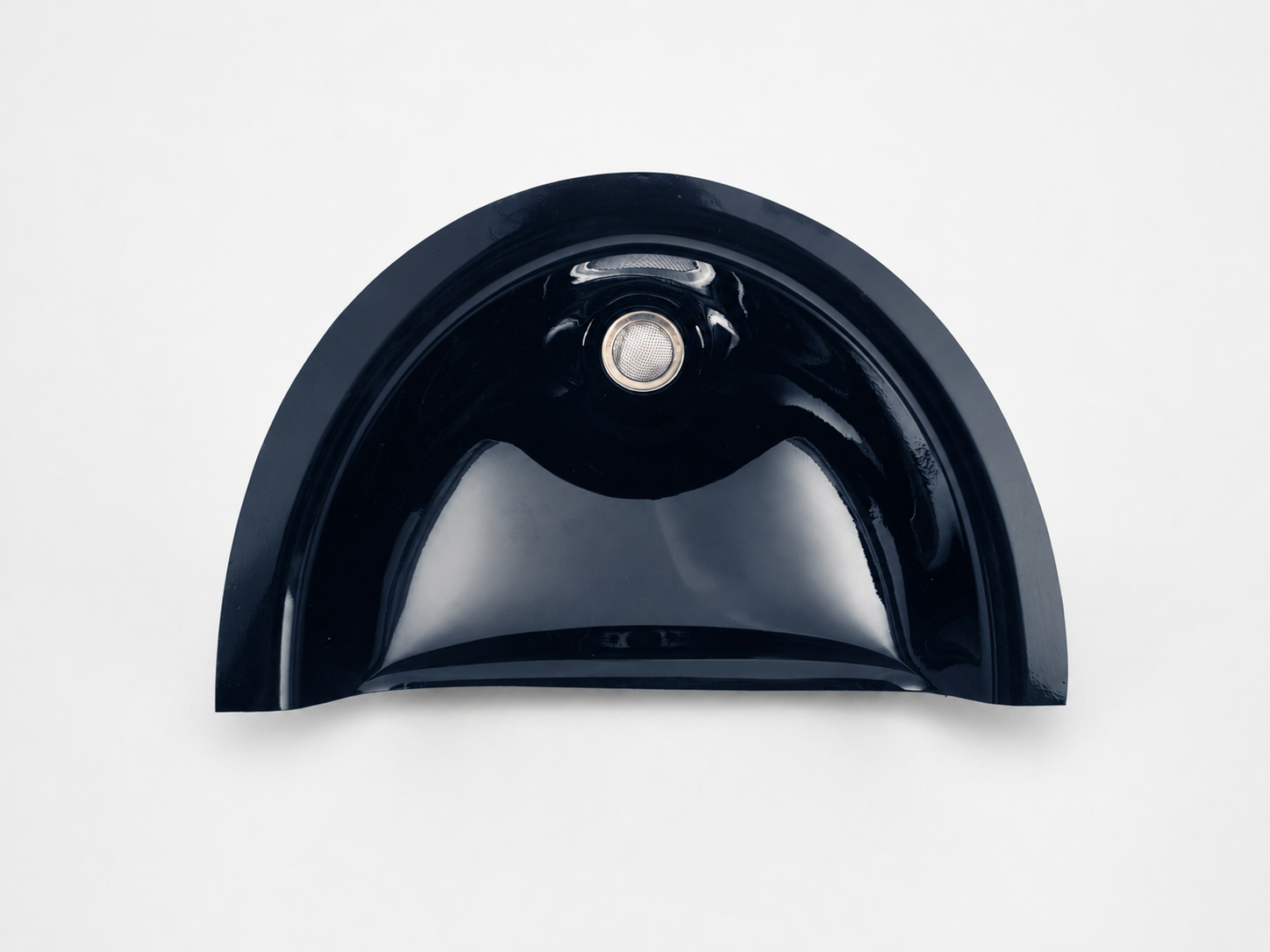

Compact Urine Separator Diverter for Composting Toilets
Optimise your composting toilet with our compact urine separator diverter. This essential component diverts urine away from solids, helping to maintain an odour-free and hygienic environment. This is the compact version of our Complete Urine Separator.
Features:
- Effective Urine Separation: Keeps urine separate from solids to prevent odours.
- Easy Maintenance: Attaches easily to the compost toilet seat platform and can be removed for cleaning.
- Durable Design: Made from sturdy plastic with a smooth, easy-to-clean surface.
- Well-Researched: Designed for optimal performance for both male and female users.

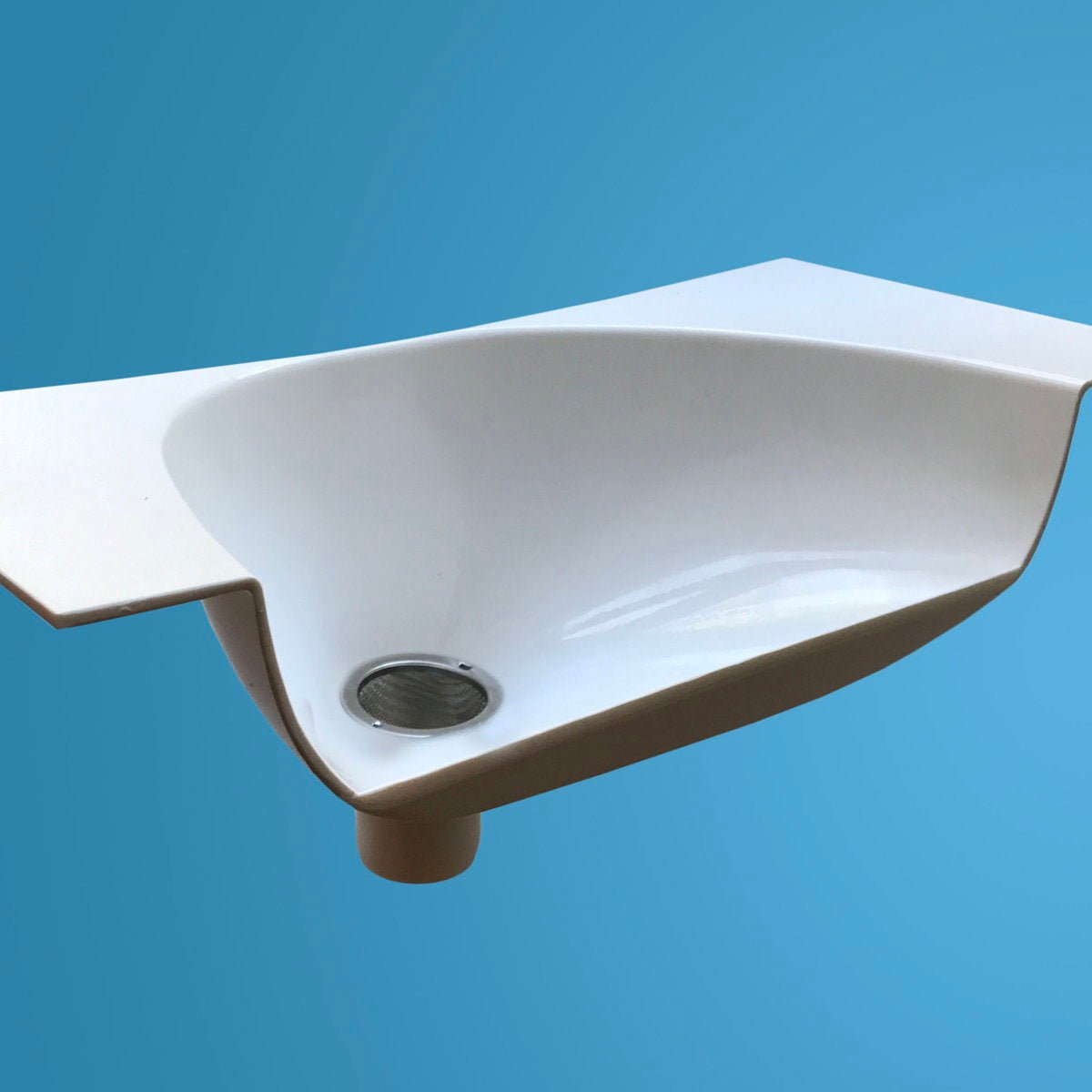

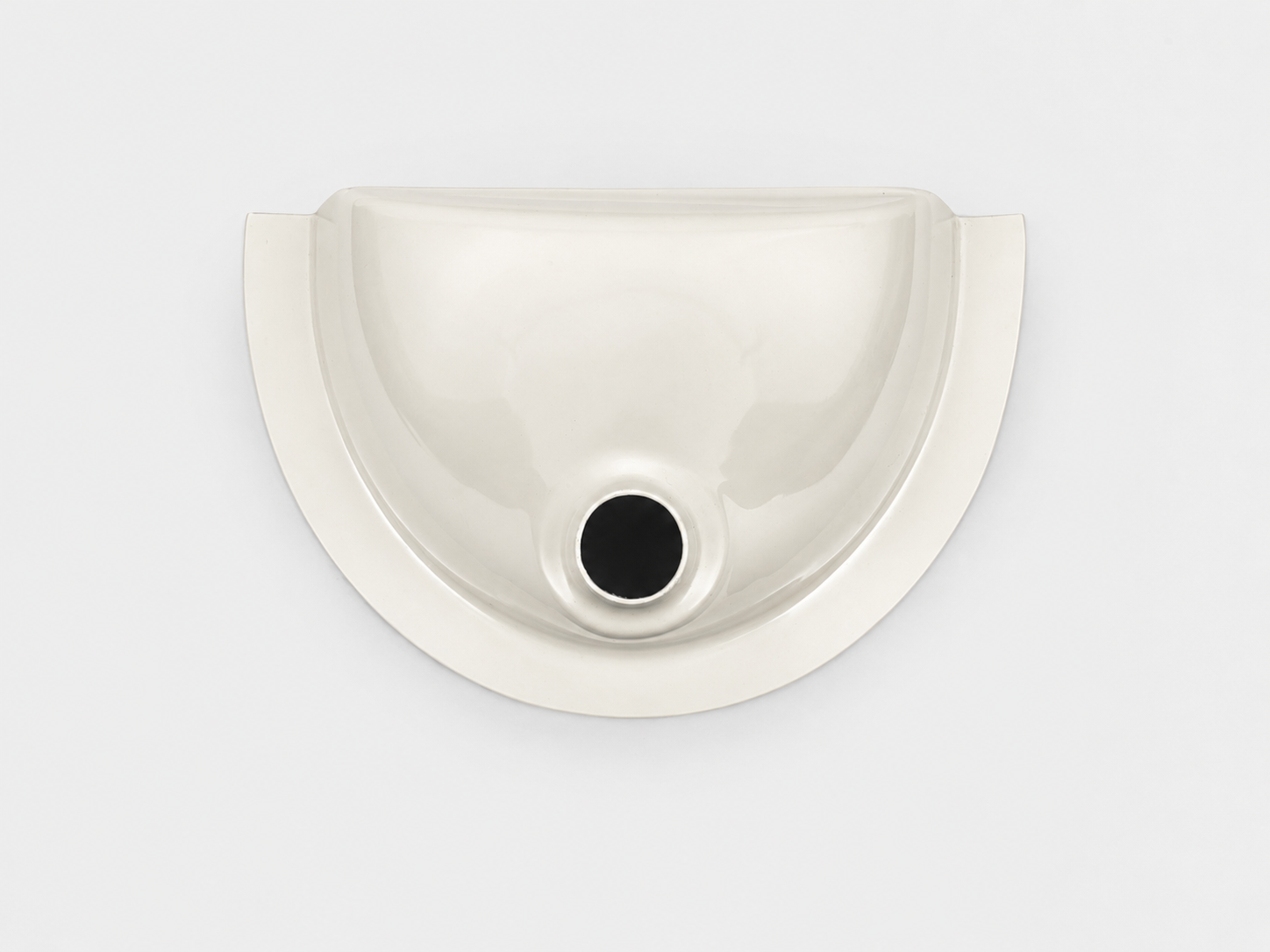

- Additional Feature: Each separator is supplied with a removable metal filter that sits over the outlet hole, preventing the pipework from becoming blocked.

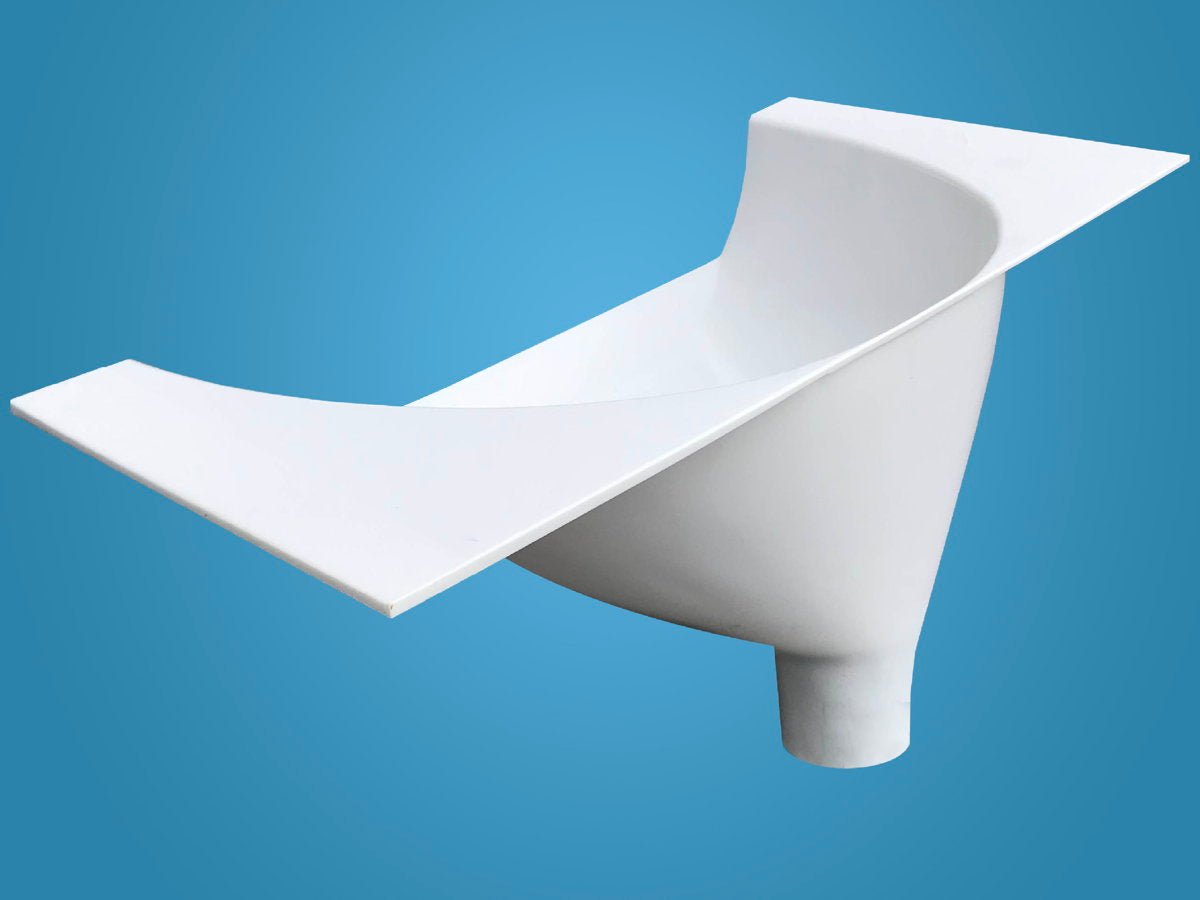

Dimensions of Urine Diverter
- Width: 170mm
- Length: 283mm
- Depth: 128mm
- Hole size: 30mm (external diameter)
Installation

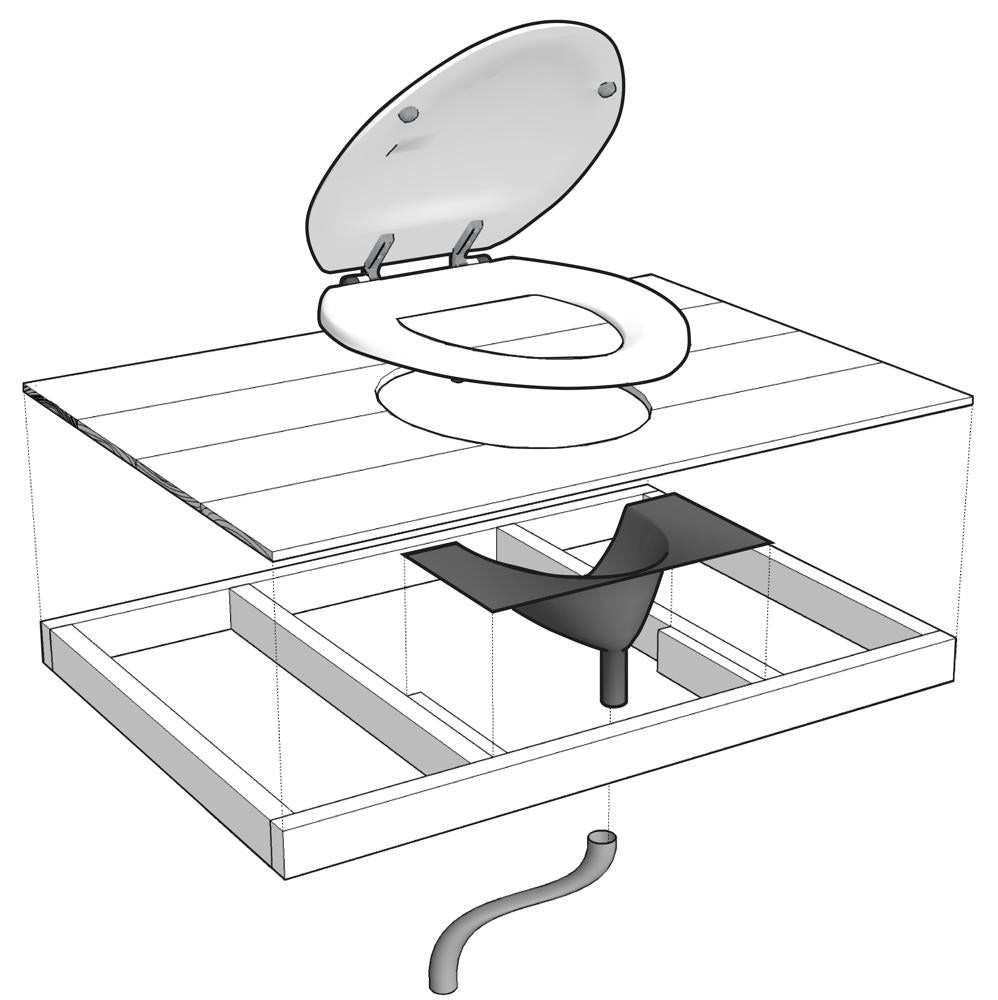

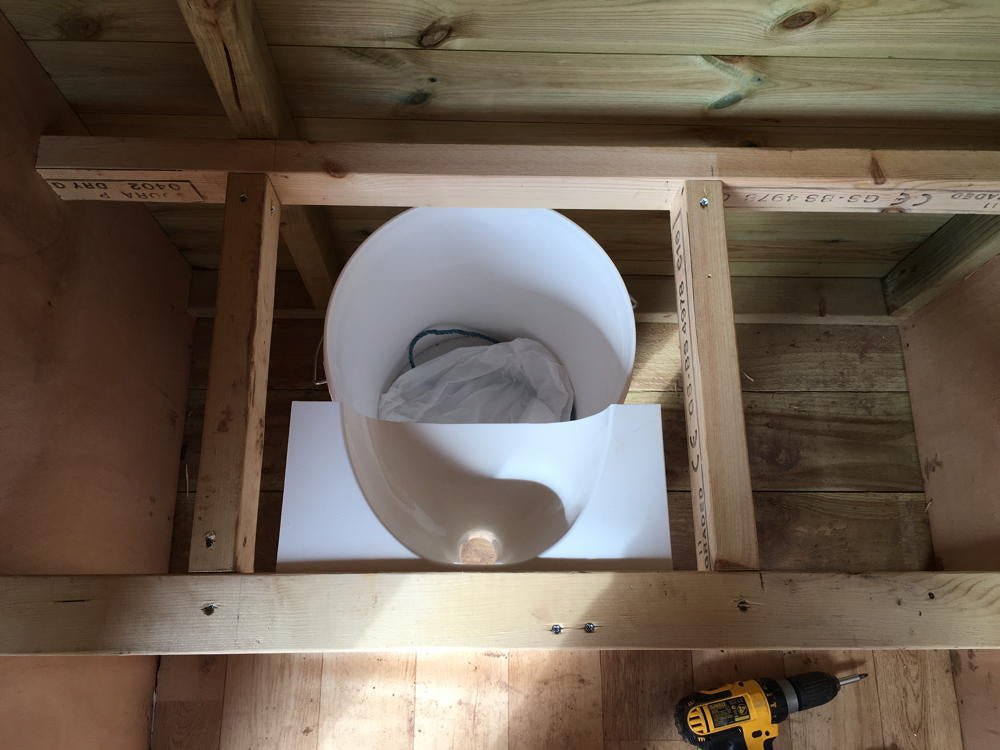

The urine separator is placed under the toilet seat with screws. We find that it is best to position the separator to fill the front third of the toilet seat hole. The separator is connected using standard 1 1/4" push-fit waste pipe.

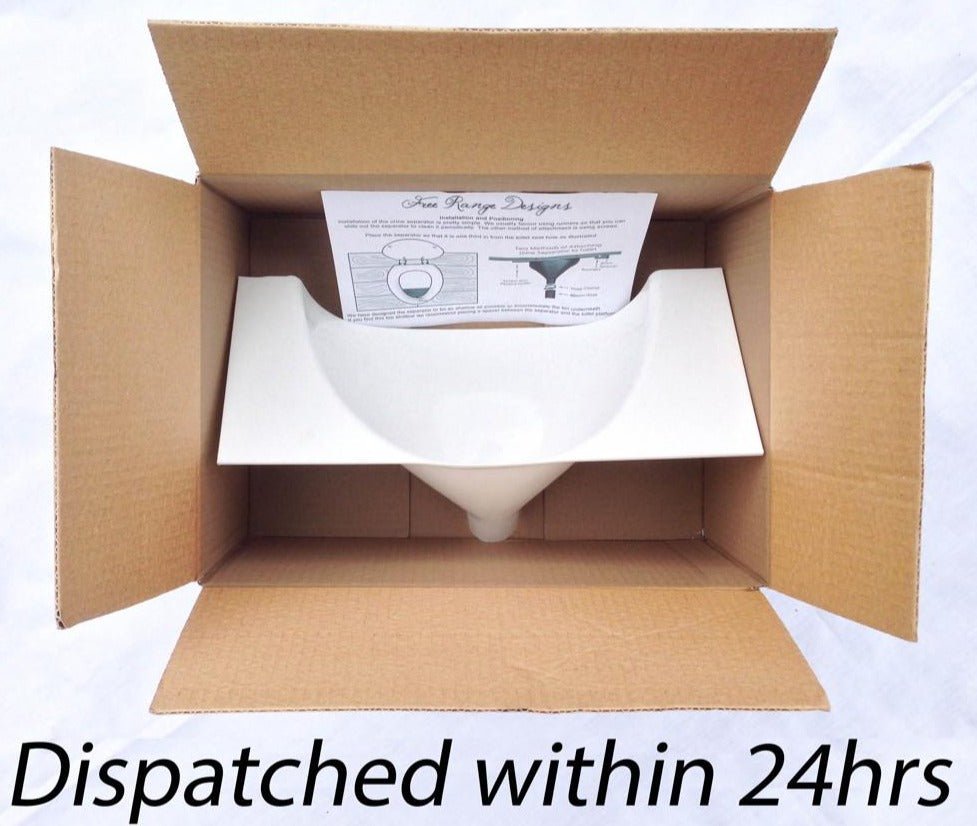

Delivery time: 1-3 working days
Customers outside the UK buy here
Hello international customers
Wherever you are in the world, you can receive one of urine separators!
European Customers
If you are in the EU - to avoid issues with taxes - please purchase through one of our Amazon or eBay stores. See links below.
International Customers outside the EU
1. You can Add to Cart as normal and we will deliver from the UK. Standard shipping times are between 5-10 days.
2. If your country is listed below, order from our Amazon shop for Next Day Delivery.
** Our Amazon Shops offer next day Prime Delivery **
Germany: ebay.de/str/freerangedesigns
France: ebay.fr/str/freerangedesigns
Italy: ebay.it/str/freerangedesigns
Spain: ebay.es/str/freerangedesigns

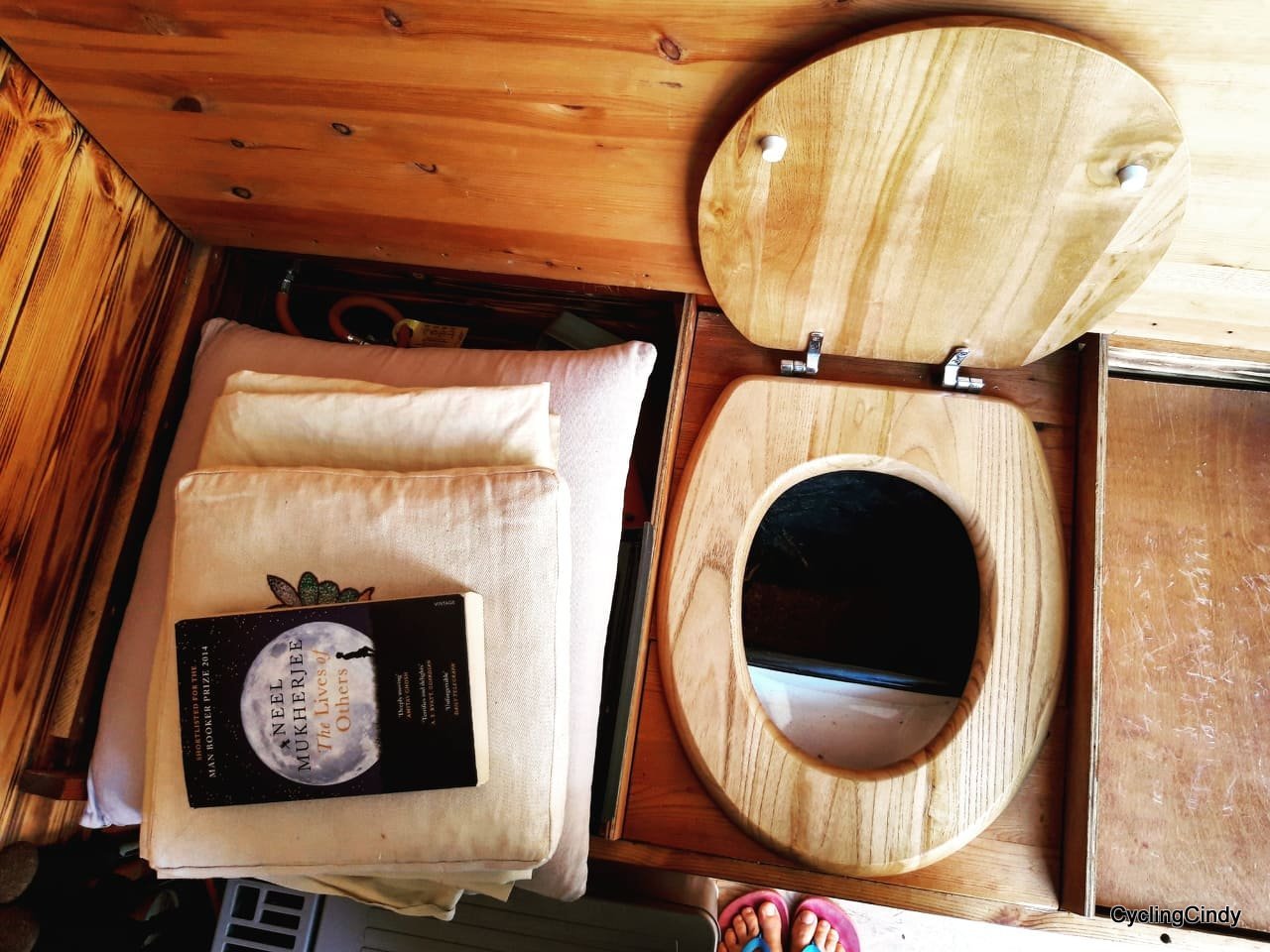

Customer Photos
Technical Data
Material
- made from recyclable ABS plastic
- easy to adjust and work with
- 4 mm strong material
Dimensions
Length : 17,50 cm
Width : 28,50 cm
Height : 12,80 cm
Tapered Spout Diameter : 30mm - 32mm
Key Features
- 20 years design experience
- Latest diverting Technology
- Durable construction
- Smooth, easy-to-clean surface
FAQ
Here are some common questions we have been asked over the 20 years of selling urine diverters.
Do you always have stock available?
Yes, we make the urine separators ourselves in our workshop in Wales, UK. This means that we can control production and never run out of stock.
How many different designs of separator do you have?
We make two different designs: the Classic Urine Separator and the Complete Urine Separator.
What features do the separators share?
- The internal measurements of both separators are exactly the same. The funnel bowl size is the same; the outlet pipe has the same dimensions and both separators are fitted with the same size metal filter.
- The separators are all made from the same high quality 4mm ABS plastic.
What are the differences between the two separators?

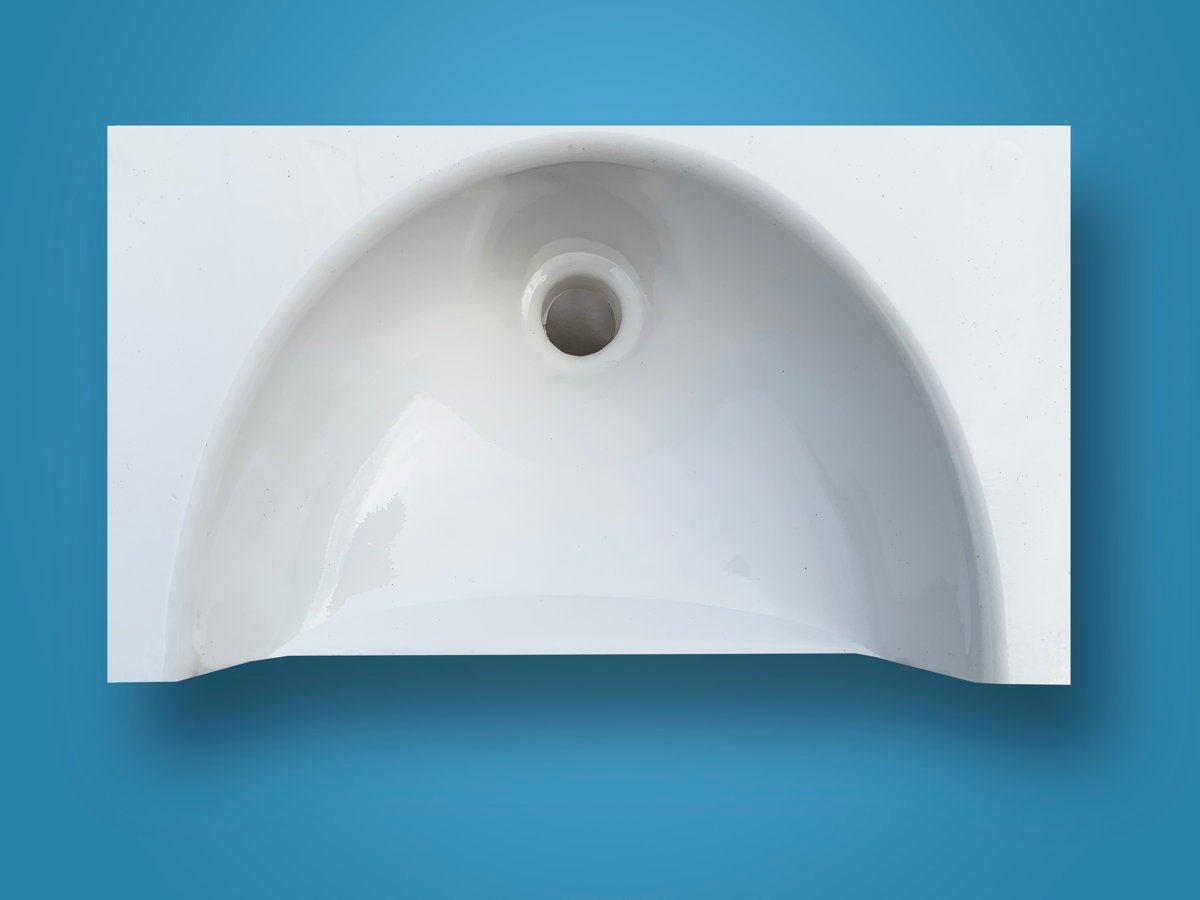

The Compact Urine Separator is the original design that we first made in 2009. It is smaller than the Complete Separator and fills around the front 1/3 of the oval space inside the toilet seat. The Compact Separator has a single hole for collecting urine, leaving the space behind open.
The Complete Urine Separator has a rim at the back and an additional opening for solid waste. This opening extends downwards, containing solid waste as it falls, so that it lands safely in the bucket and the inside of the toilet doesn’t get dirty. The Complete separator fills the entire oval space inside the toilet seat.
The Complete Urine Separator is supplied pre-cut into an oval shape. No further cutting is required. The Compact Urine Separator is supplied square with extra plastic around the funnel curve. You can use it exactly as it is, or you can easily cut the plastic to a bespoke size using a jigsaw at the lowest speed.
What are the benefits of the different separators?
The Compact Urine Separator is smaller and its position can be adjusted, moving it slightly forwards or backwards inside the oval opening of the toilet seat, to capture the maximum amount of urine. The Complete Separator is in one fixed position, as it fills the entire oval space.
The Complete Separator is larger has a contained area at the back for solid waste. This can help to keep the inside of the compost toilet clean.
What are the separators made from?

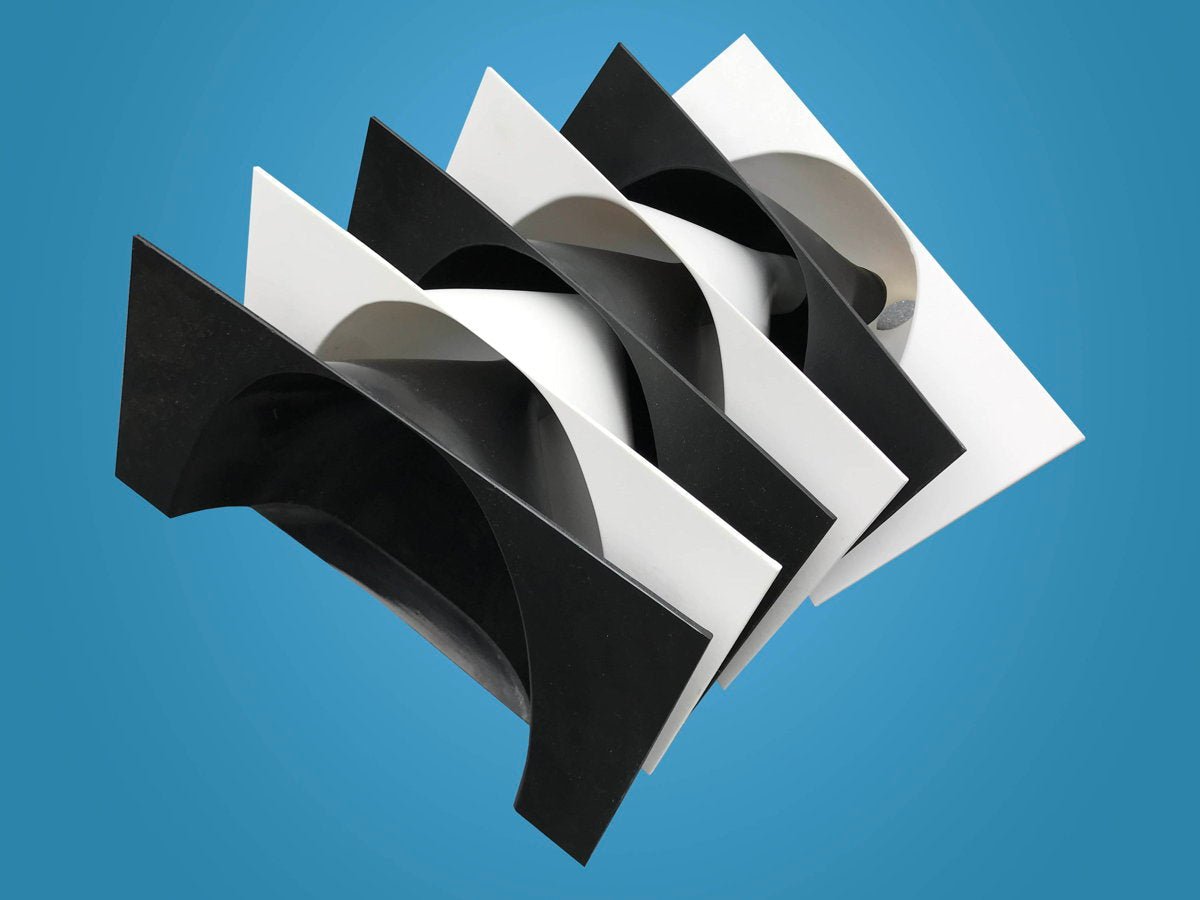

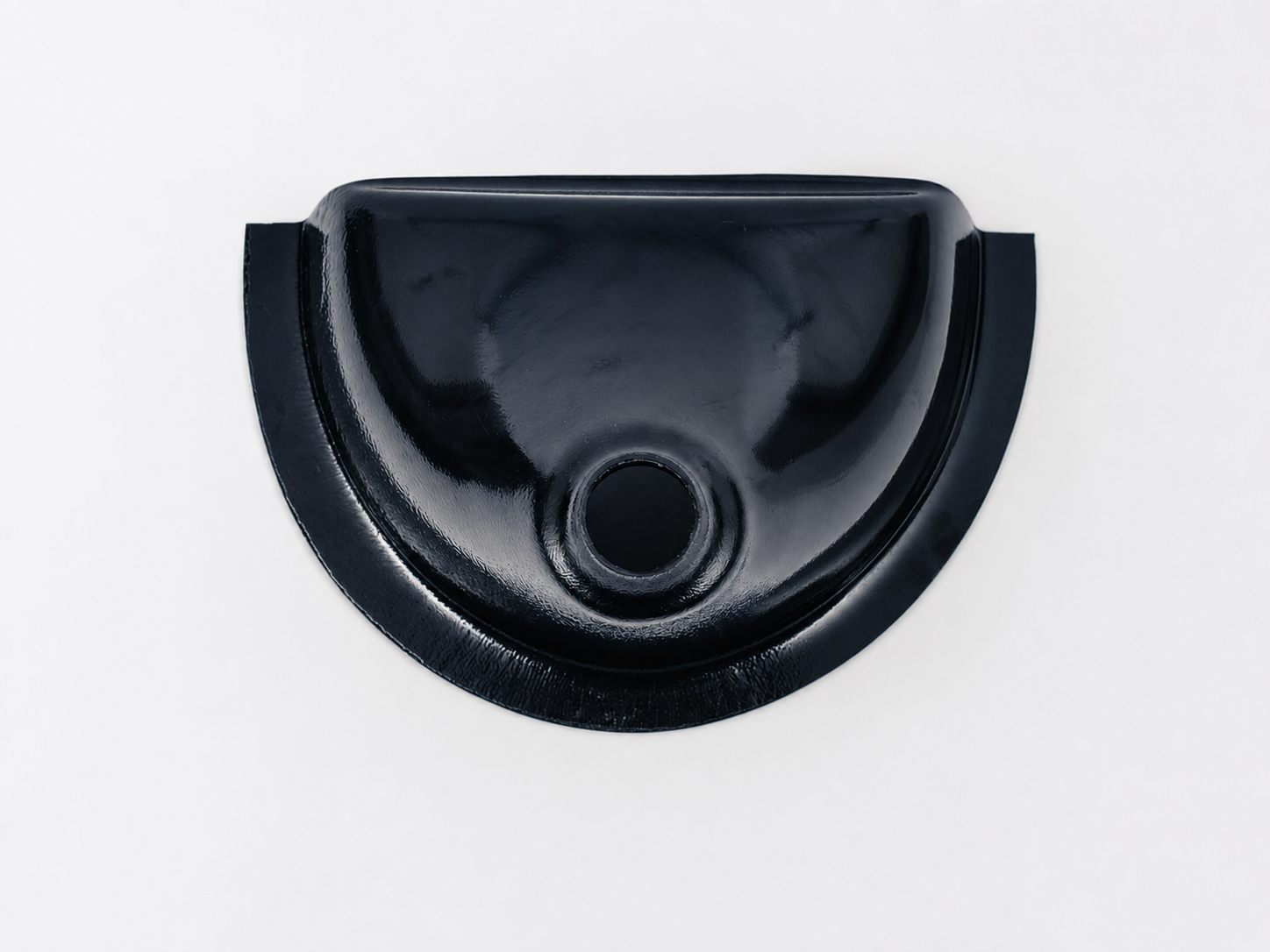

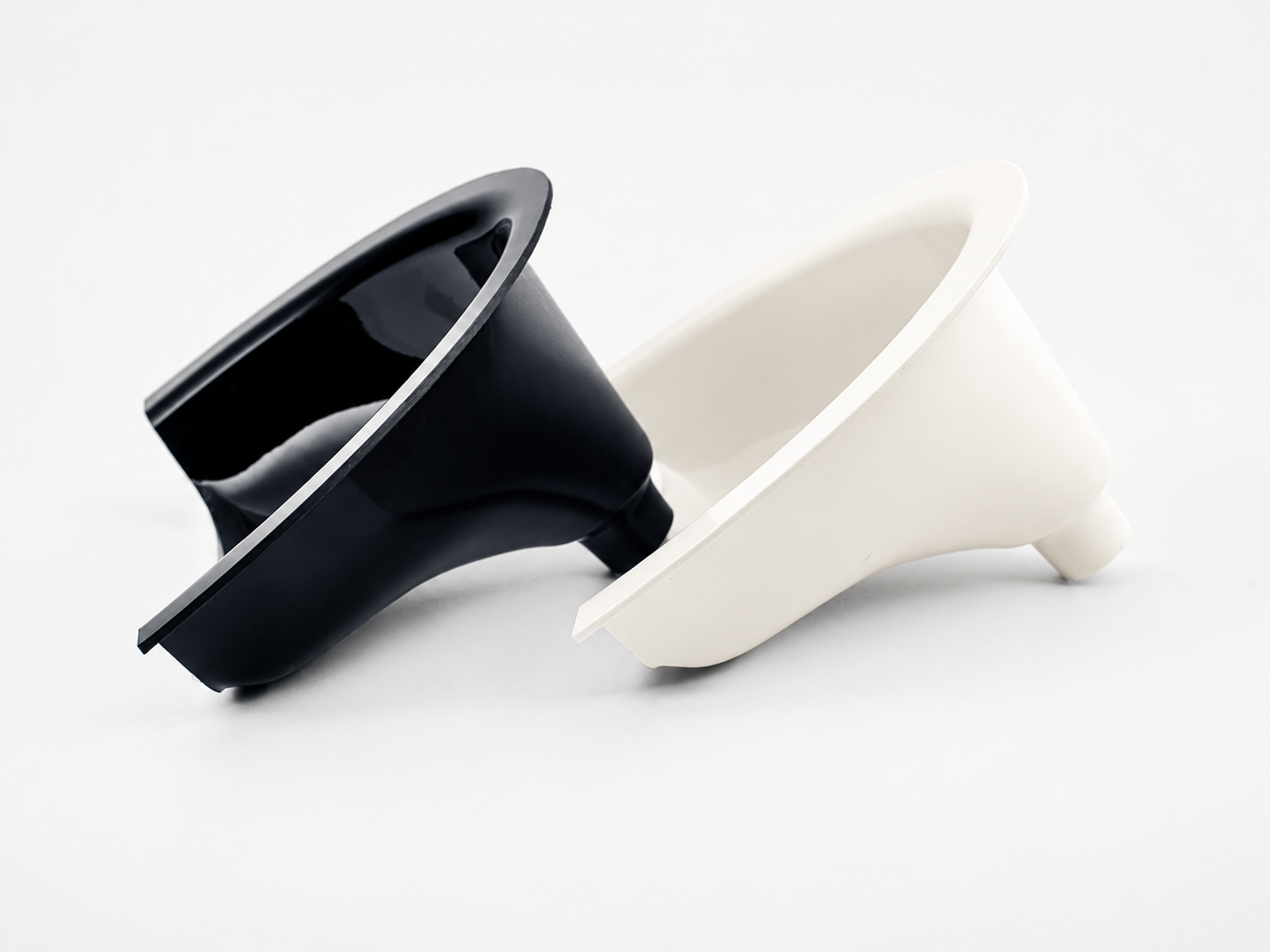

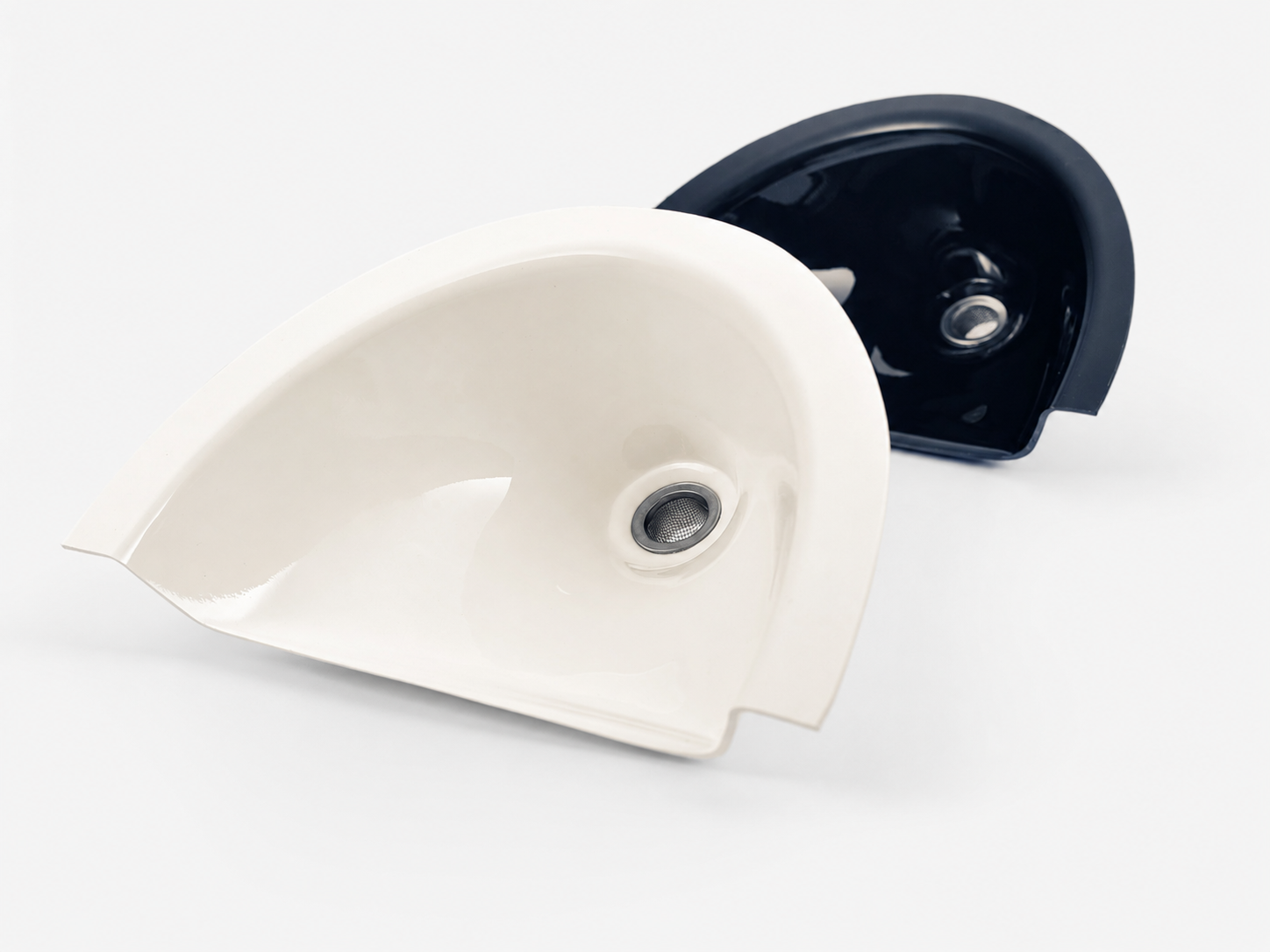

All Free Range Designs urine diverters are made from solid 4mm ABS plastic, in either white or black. ABS plastic is a very strong and durable material; it is also recyclable, and easy to clean with a high-gloss surface.
What pipe size do I need to connect to the separator?
The external diameter of the funnel outlet on both separators is 30mm. We therefore recommend you use a 32mm pipe, also sold as 1, ¼”
Great product. Love the black. One minor design flaw, and if you're handy with a jigsaw and some duct tape, flaw is easily remedied, otherwise urine runs down the underneath onto the base of whatever bucket is sitting on. I bought 4 to replace the one I had for years, that finally snapped in two.
Fits just right in my system. Prompt shipment and good communication.
Looks to be well made too. Very happy!

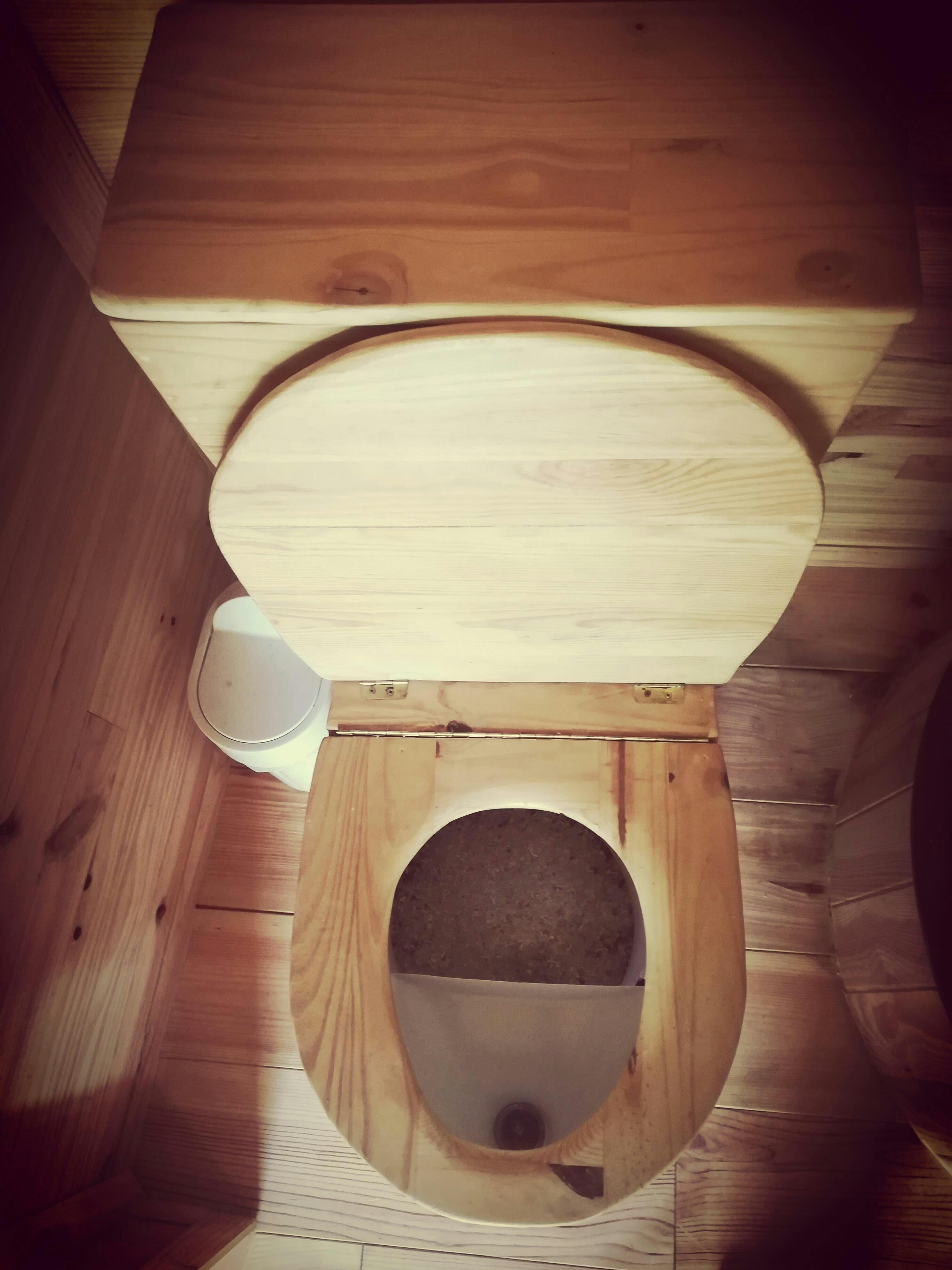

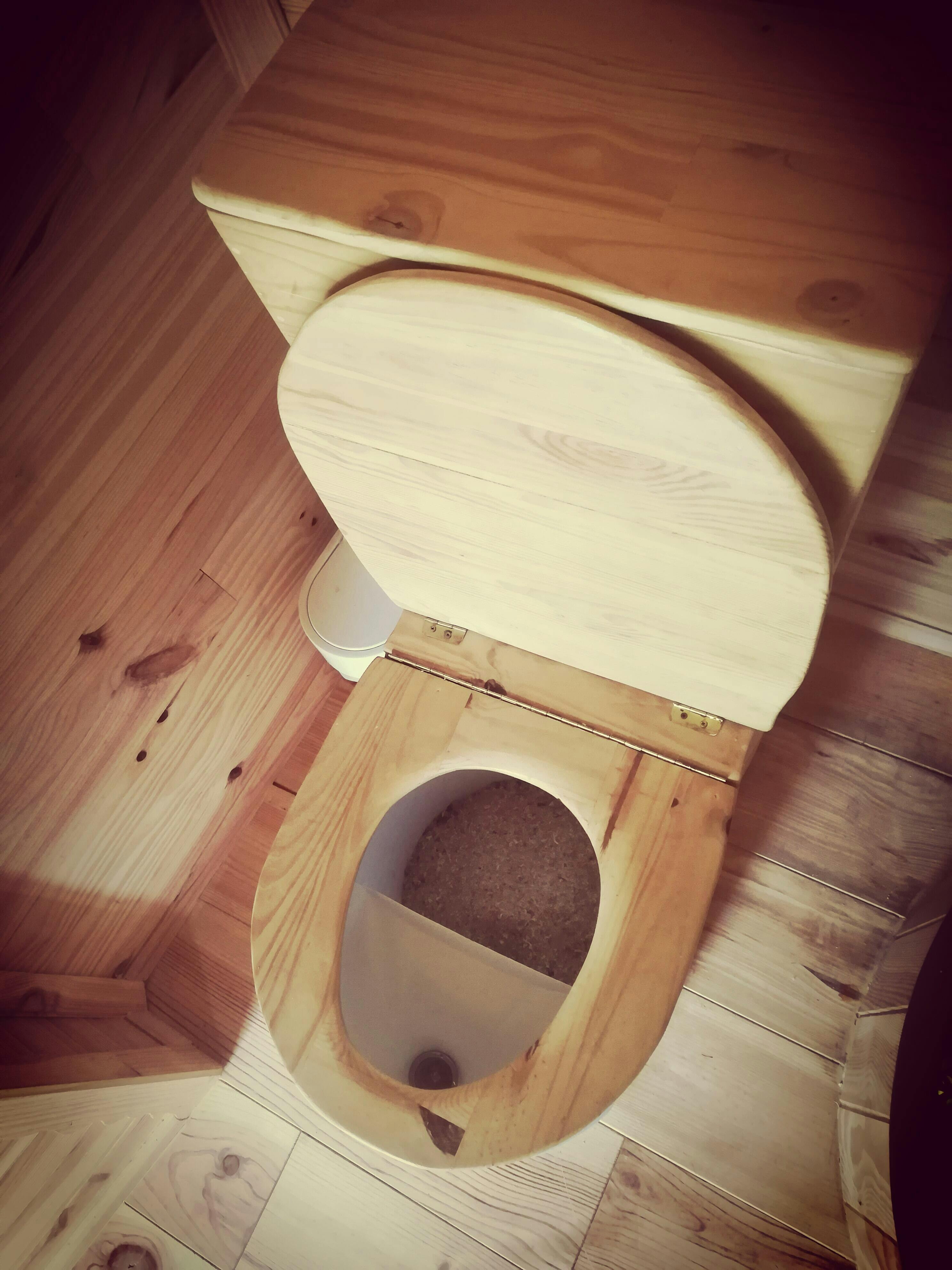

Hello!!
We are very happy with our purchase!!
Here are some photos in attach.
We are at Ananda Valley - Portugal

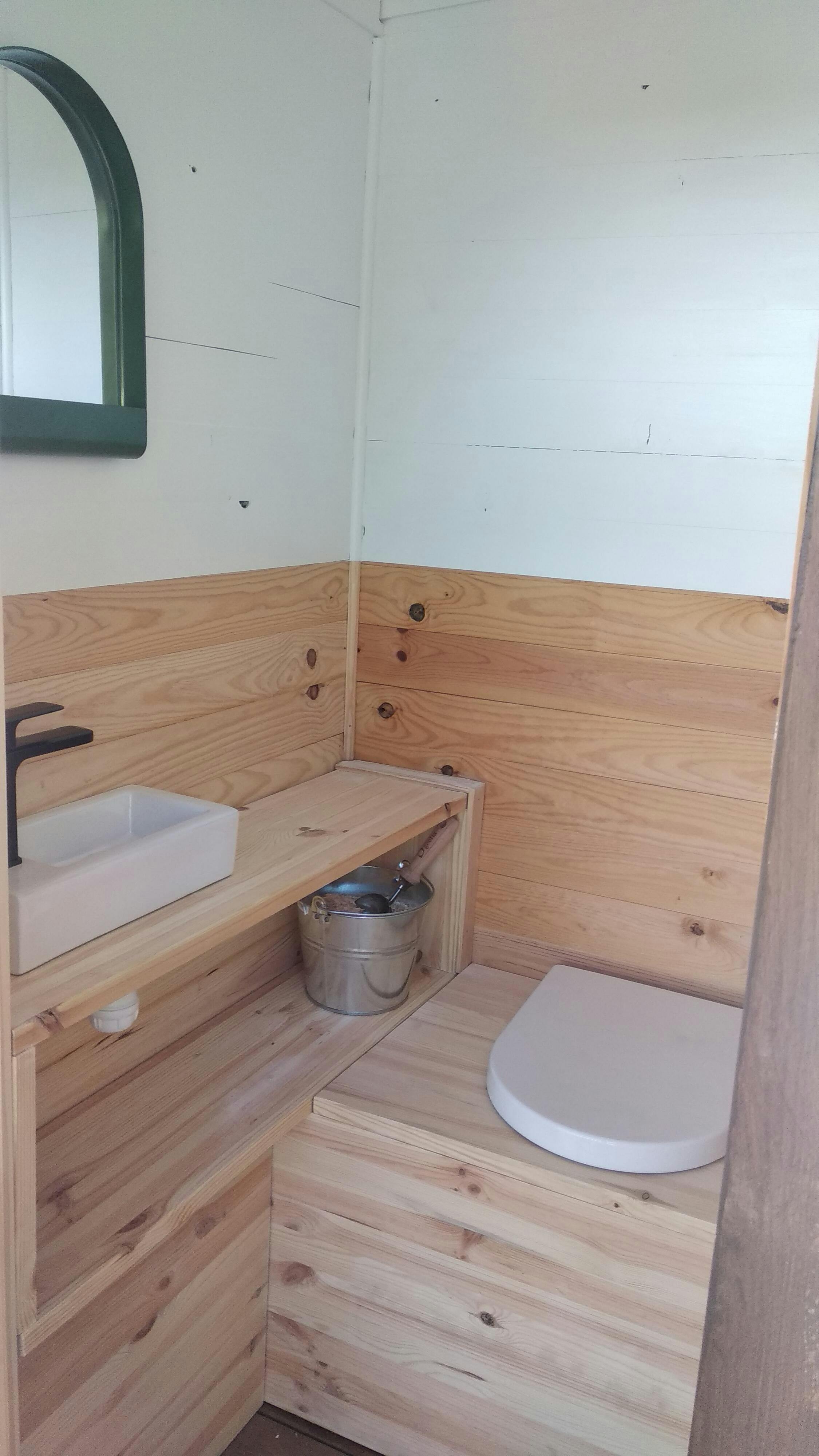

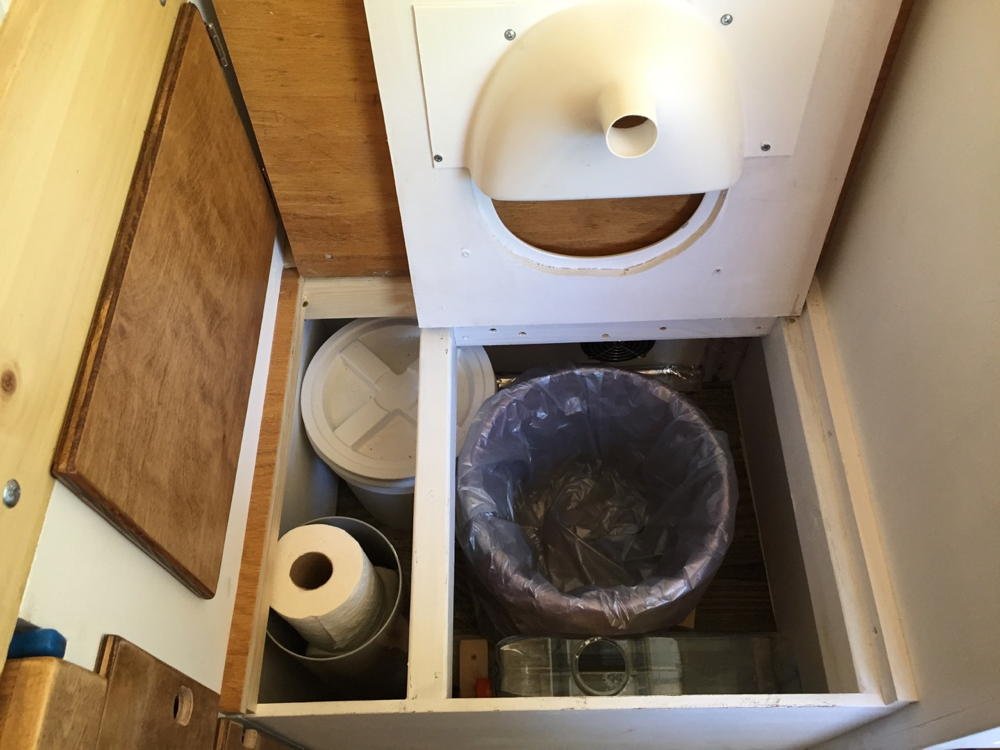

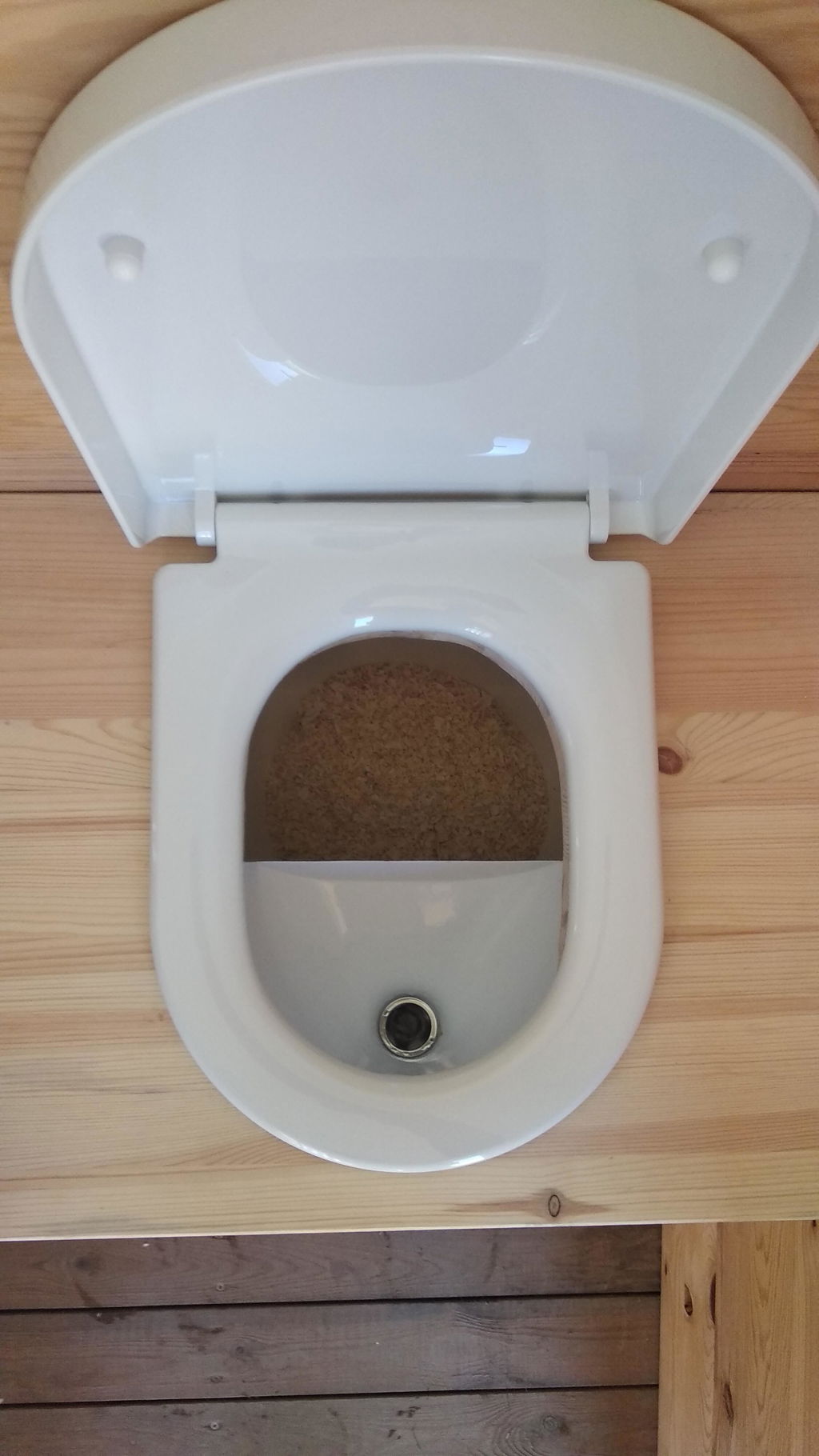

Hi,
I am David from Spain. I send you the pictures off my composting toilet. Your urine separator is great.
Thanks

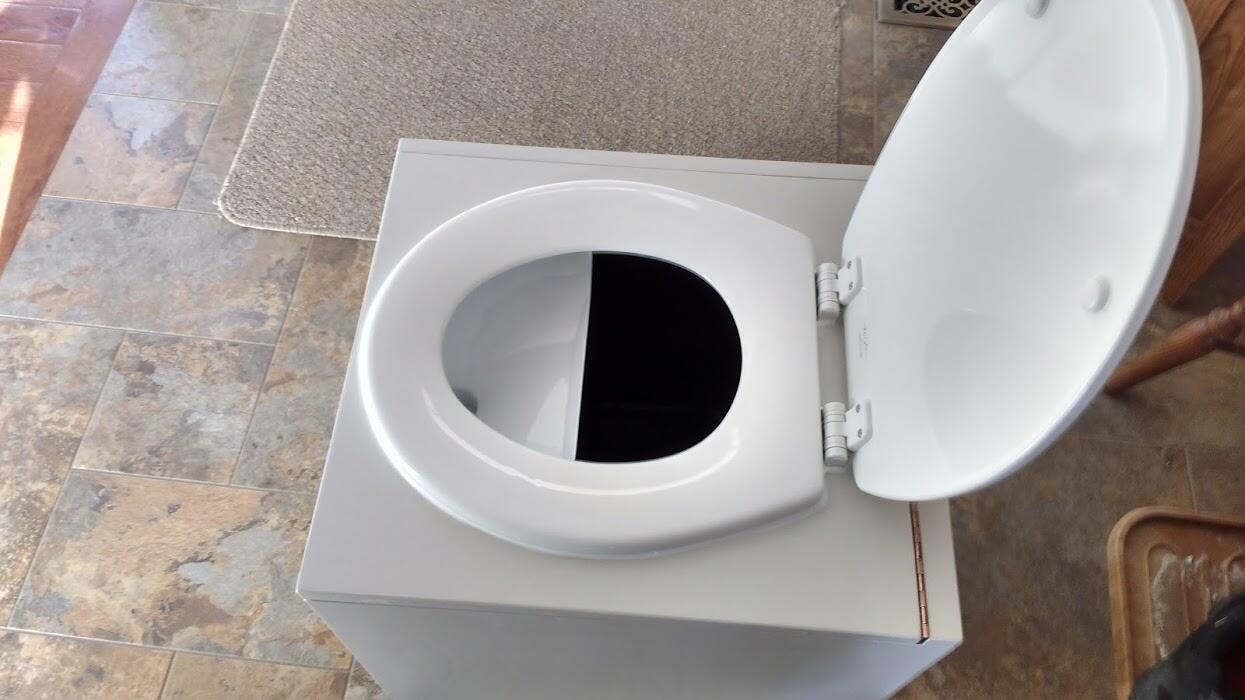

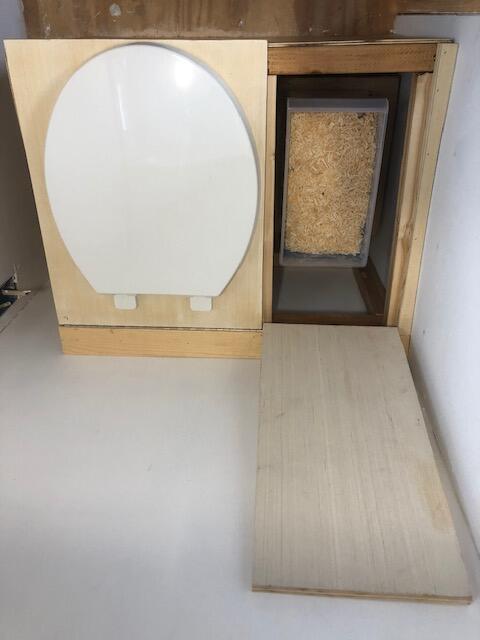

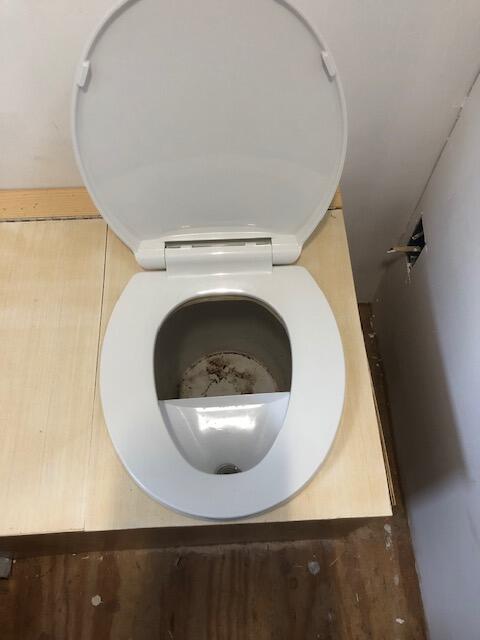

Hello,
Per your request, I’m sending some pix of my composting toilet. I’m currently in Little Rock, Arkansas, USA, but will be moving my tiny house on wheels to Bozeman, Montana, USA soon. Although I haven’t had the opportunity (or need) to use it yet, I think it will be a finely operating system.
James French
